1 Communicating with the MICRO/I
24-8 WindO/I-NV4 User’s Manual
■ Search
Search for MICRO/I on the same network that can be connected to a computer via maintenance communication.
Click this button to display the Search MICRO/I dialog box. For details, refer to “Search MICRO/I dialog box” on
page 24-9.

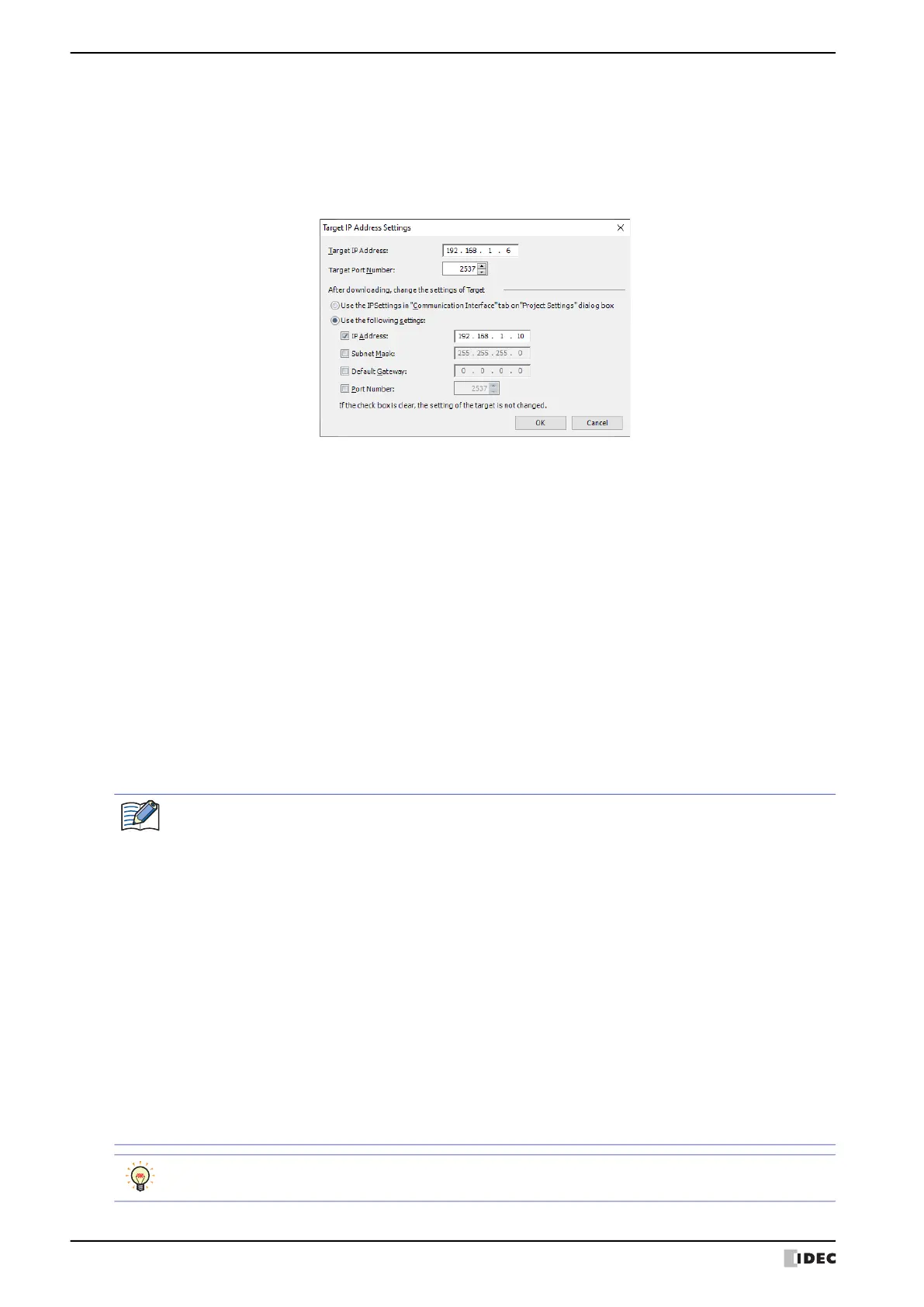

Target IP Address Settings dialog box
Specifies the IP address of the MICRO/I used for communication.
■ Target IP Address
Specify the IP address for the target MICRO/I to execute this function.
■ Target Port Number
Specify the port number for the target MICRO/I to execute this function.
■ After downloading, change the settings of Target
Change the IP settings of the target MICRO/I after project data is downloaded. Select from the following setting methods.
Use the IP Settings in "Communication Interface" tab on "Project Settings" dialog box:
Use the network settings configured in the Communication Interface tab on the
Project Settings dialog box. For details, refer to Chapter 4 “When Ethernet is selected
under Interface Configuration” on page 4-41.
Use the following settings:
Use the following IP settings. Select the check boxes to change items. Settings for which
the check box is clear are not changed.
IP Address:
Enter the IP address to register in the project data.
Subnet Mask: Enter the subnet mask to register in the project data.
Default Gateway: Enter the default gateway to register in the project data.
Port Number: Enter the port number to register in the project data.
Regarding TCP port number of MICRO/I, note the following points.
The numbers that cannot be used:
• 2539: Maintenance communication (Data Transfer)
• 2538: For pass-through
• 2101: For FC4A Series MicroSmart direct connection pass-through
Duplicate numbers cannot be configured in the following functions:
• Maintenance communication ( refer to Chapter 4 “Port Number” on page 4-41)
• Web server function ( refer to Chapter 4 “Port Number” on page 4-67)
• FTP server function ( refer to Chapter 4 “Port Number” on page 4-68)
• TCP Server is selected for the User Communication
( refer to Chapter 4 “Port No.” on page 4-43)
• Modbus as Manufacture and Modbus TCP Server as Communication Driver are selected on
the Communication Driver tab
( refer to the WindO/I-NV4 External Device Setup Manual)
• YASKAWA Electric as Manufacture and MP2000(Ethernet) as Communication Driver are
selected on the Communication Driver tab
( refer to the WindO/I-NV4 External Device Setup Manual)
After downloading the OS, the settings of the target will be the IP settings in the Communication
Interface tab on the Project Settings dialog box.
To Next Page
