MICRO/I Specifications

5.3 Part Names

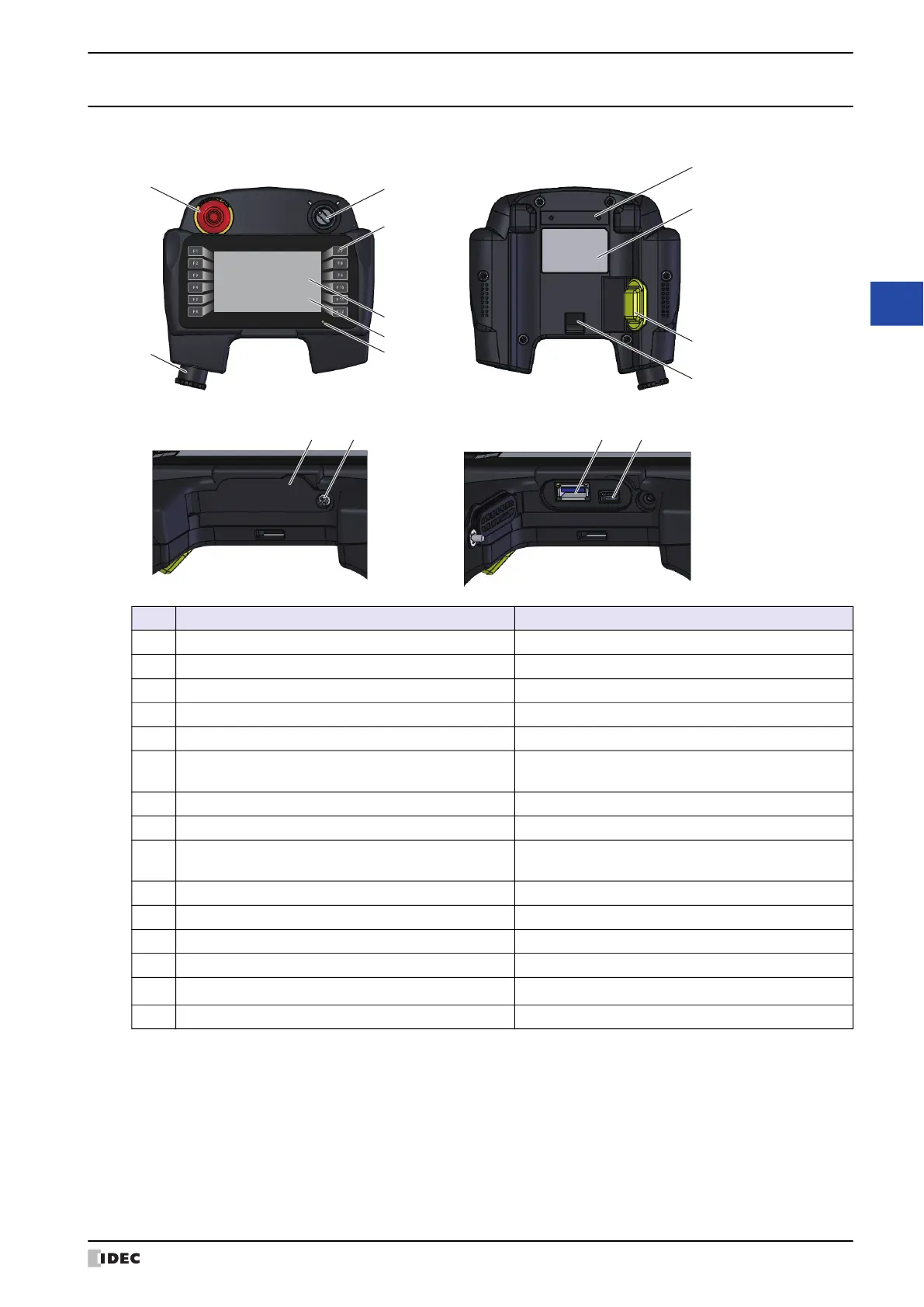

■ HG1P

*1 USB flash drive only

No. Name Description

(1) Emergency Stop Switch 1 (external wiring)

(2) Selector Switch 1 (external wiring)

(3) Function Key 12 (internal wiring)

(4) Display TFT color LCD

(5) Touch Panel Analog Resistive Film

(6) POWER LED

Green (lit) : Normal Operation (Power is on.)

Not lit : Power is off.

(7) Connector Removable 19-pin Female Connector

(8) Mounting Hole For Wall-Mounted Hook Wall-mounted hook screw mounting part (2)

(9) Nameplate

Label printed with Part number, Serial Number and

Consumption Current

(10) Enabling Switch 1 (external wiring)

(11) Hand Strap Mounting Part -

(12) USB Port Cover -

(13) USB Port Cover Mounting Part USB port cover screw mounting part (1)

(14)

USB Interface (USB2)

USB2.0 (Host) Connector : Type A

(15) USB Interface (USB1) USB2.0 (Device) Connector : Mini-B

①

⑦

②

③

⑪

⑧

⑫⑬ ⑭⑮

⑤

⑥

⑩

⑨

④
