The message identifier is set for all channels jointly. The respective channel is determined on the basis of
the bit in the sent message’s data byte.
Example:
Identifier for reset-message = 200, Channel 2 is to be reset.

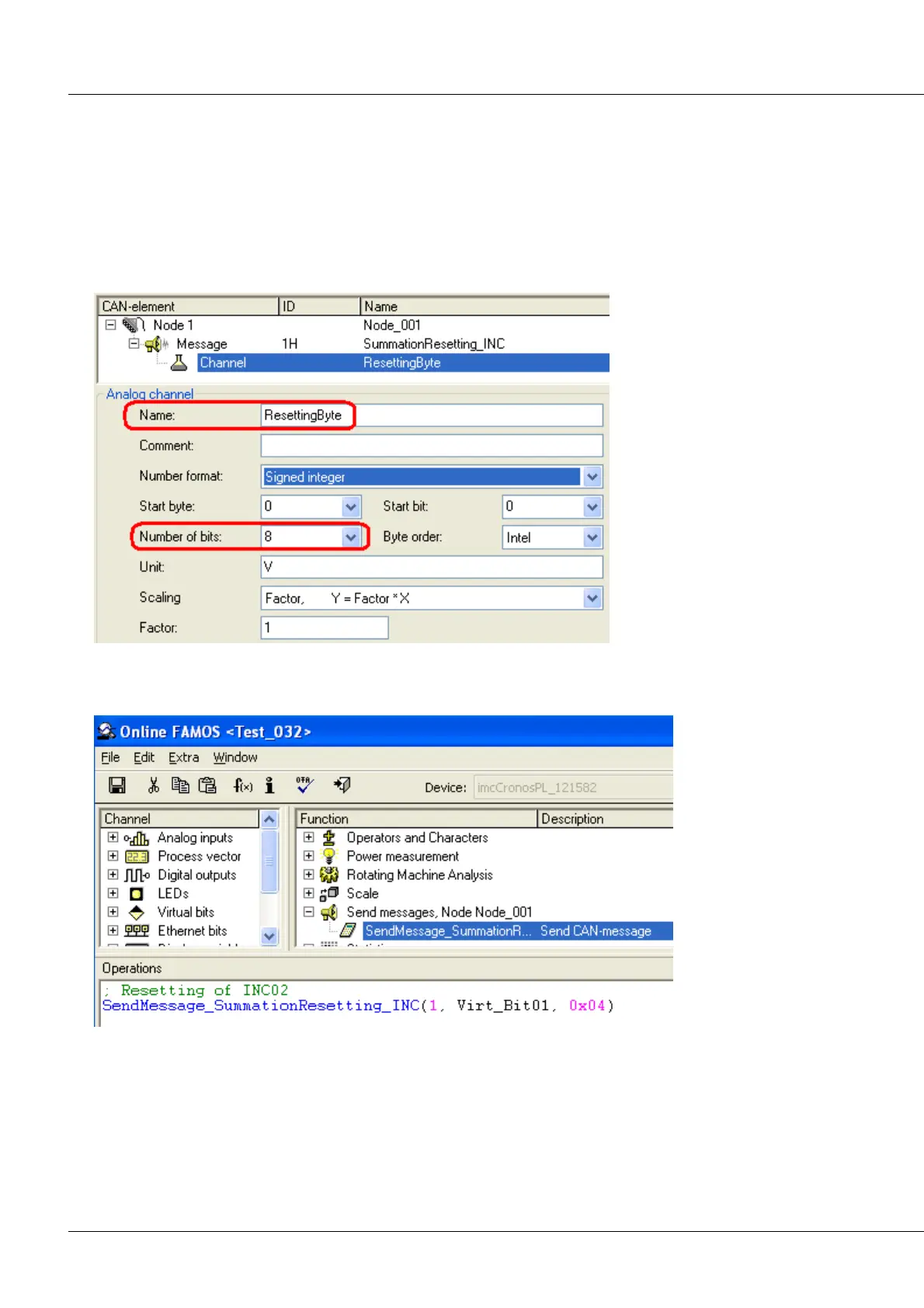

1. Create the message to be sent in the CAN-Assistant. A message having one data byte is required. Give
a distinct name to this message. Then assign a channel to it. Since only one data byte is available, this
channel’s length can not exceed 8 bits. All other settings play no role at this point.
2. imc Online FAMOS (imc DEVICES / imc STUDIO) sends a message if the virtual bit Bit01 is set. In this
message, the value 0x04H is set to INC4 and resets the value of the incremental counter channel 02.
