4-60 Service Manual
7510

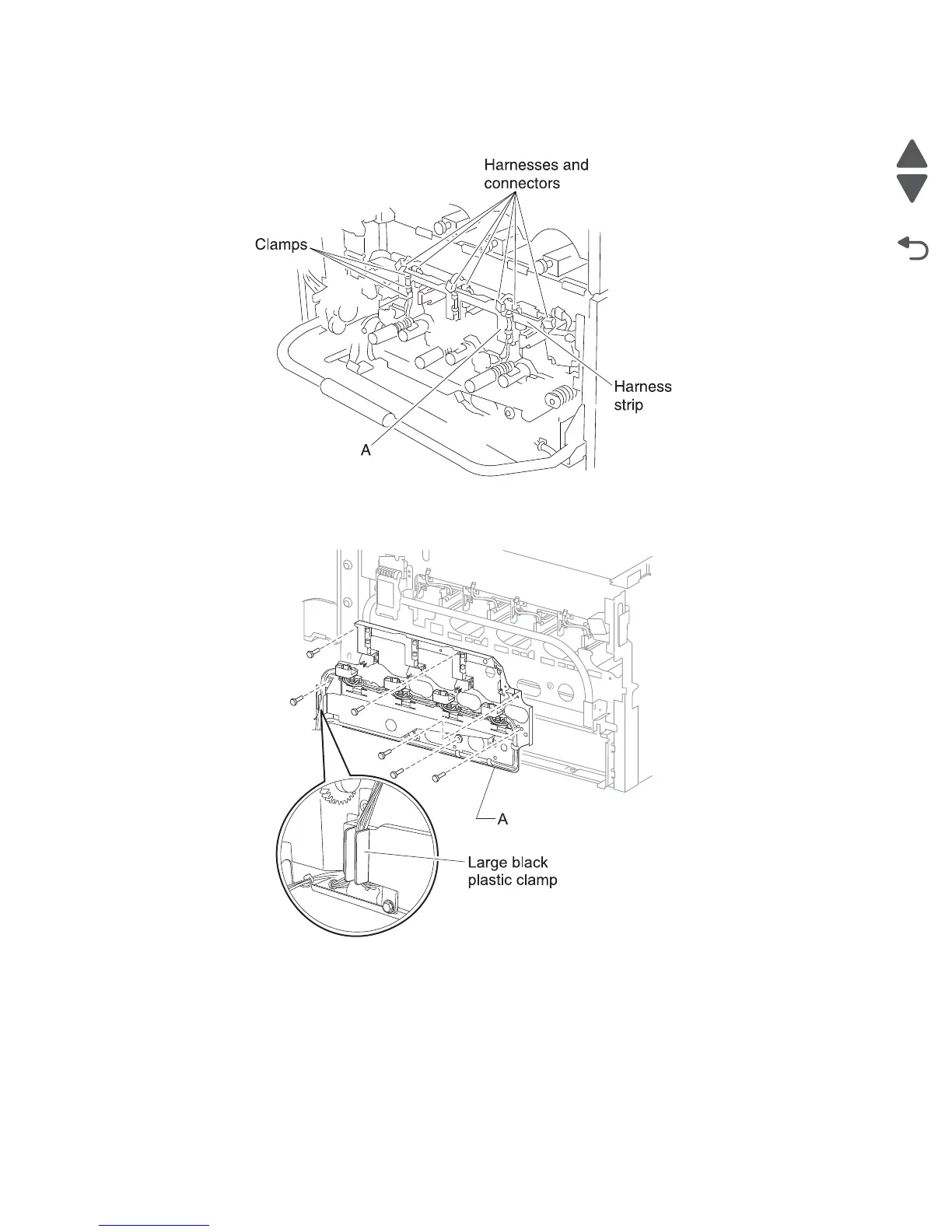

Warning: Use extreme caution when disconnecting the next seven connectors from the upper harness
strip, or damage will occur.
9. Disconnect the seven connectors from the upper harness strip.
10. Remove the six screws securing the developer interlock plate assembly (A) to the machine.
11. Remove the purple harness from the large black plastic clamp on the developer interlock plate assembly (A)
Warning: Note the orientation of the four developer unit harnesses and the three erase lamp harnesses to
ensure proper reinstallation or damage may occur.
12. Remove the four developer harnesses from the four small plastic clamps on the developer interlock plate
assembly (A).
To Next Page
