2-46 Phaser 7500 Printer Service Manual
Theory of Operation
Driver
Main Drive Motor Assembly (PL3.2.3)
The Main Drive Motor drives the Tray 1 Feed Roll, Tray 1 Drive Roll, Takeaway Roll,
Regi Roll, and 2nd BTR Assembly.
Drum/ Deve Drive Motor (K) (PL3.3.3)
The Drum/ Deve Drive Motor drives the Auger and Magnetic Roll that are part of
the Drum (K) and Developer Housing Assembly (K).
Drum/ Deve Drive Motor (Y/M/C) (PL3.3.5)
The Drum/ Deve Drive Motor drives the Augers and Magnetic Rolls that are part of
the Drum (Y), Drum (M), Drum (C) and Developer Housing Assembly (Y, M, C).
IBT Drive Motor Assembly (PL3.3.4)
The IBT Drive Motor Assembly drives the belt section of the IBT Belt Unit.
Fuser Drive Motor Assembly (PL3.1.10)
The Fuser Drive Motor Drive Assembly drives the Heat Roll of the Fuser Assembly
and the 1st BTR (Y/M/C/K) that are part of the IBT Belt Unit.

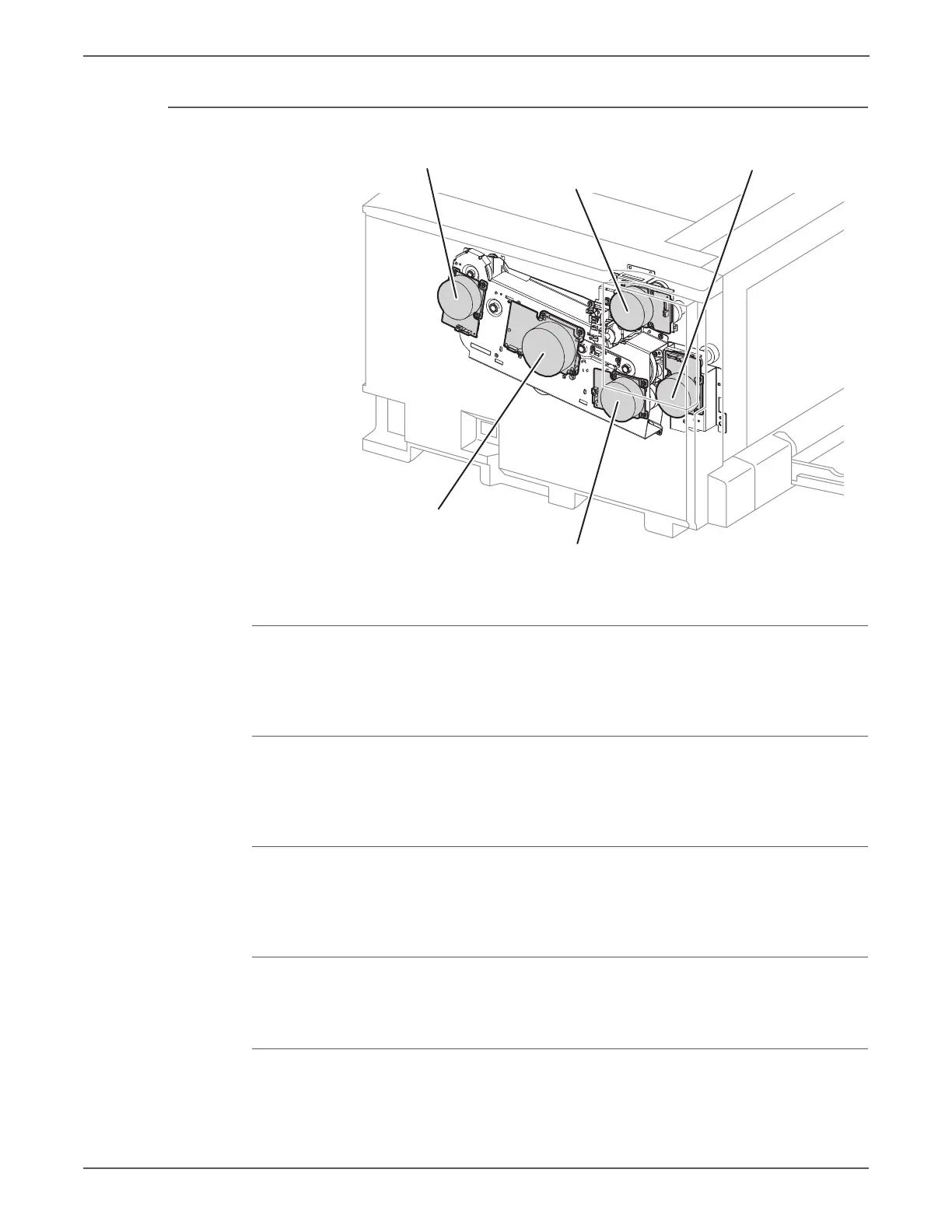

s7500-379
IBT Drive Motor Assembly
Fuser Drive Motor Assembly
Main Drive Motor Assembly
Drum/Developer Drive Motor (Y,M,C)
Drum/Developer Drive Motor (K)

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
