Phaser 7500 Printer Service Manual 9-69
Parts List

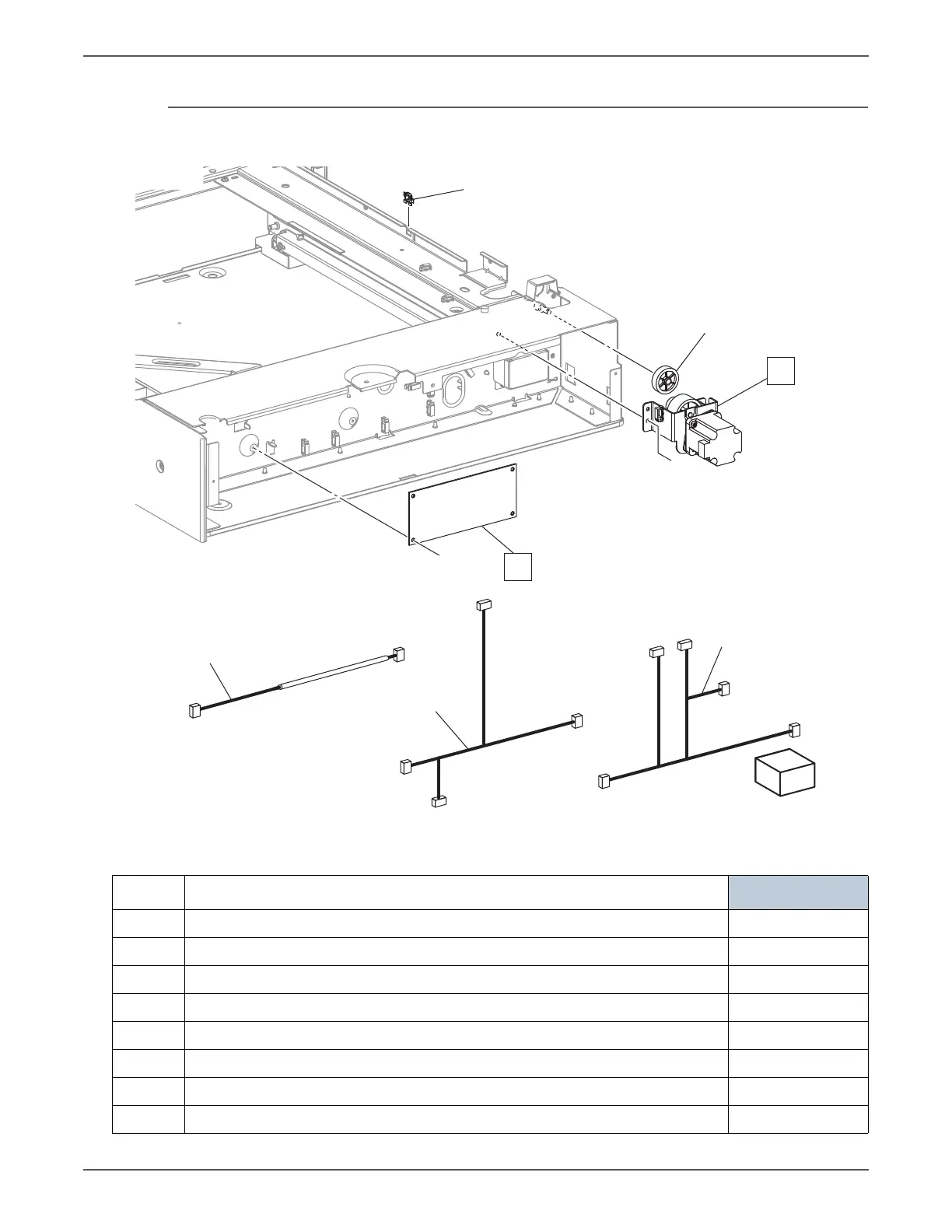

Parts List 11.5 Electrical
Parts List 11.5 Electrical
Item Description Part Number
1Gear (34T)
2 STM T/A Motor Assembly (REP 11.9, page 8-97) 127K52891
3Clamp
4 STM PWB (REP 11.10, page 8-98) 960K32325
5 Harness Assembly (Sensor2-STM)
6 Harness Assembly (Motor2-STM)
7Harness Assembly (I/F-STM)
99 Harness Kit (items 5, 6, 7) 604K53020
Right
Rear
5
6
7
AJ
AJ
PL11.5
1
2
3
4
s7500-041
