Xerox PHASER 7500 - REP 19.3 Tray 1 (MPT) Front Cover

8-214 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 19.3 Tray 1 (MPT) Front Cover
PL19.2.20
1. Pull out Tray 1.
2. Remove 1 screw (silver, 8mm) at the front of the Tray 1 Feeder Assembly.
3. Remove 1 screw (silver, 8mm) that secures the Tray 1 Front Cover.
4. Slightly open the front side of the Tray 1 Feeder Assembly towards you and
remove the Tray 1 Front Cover.

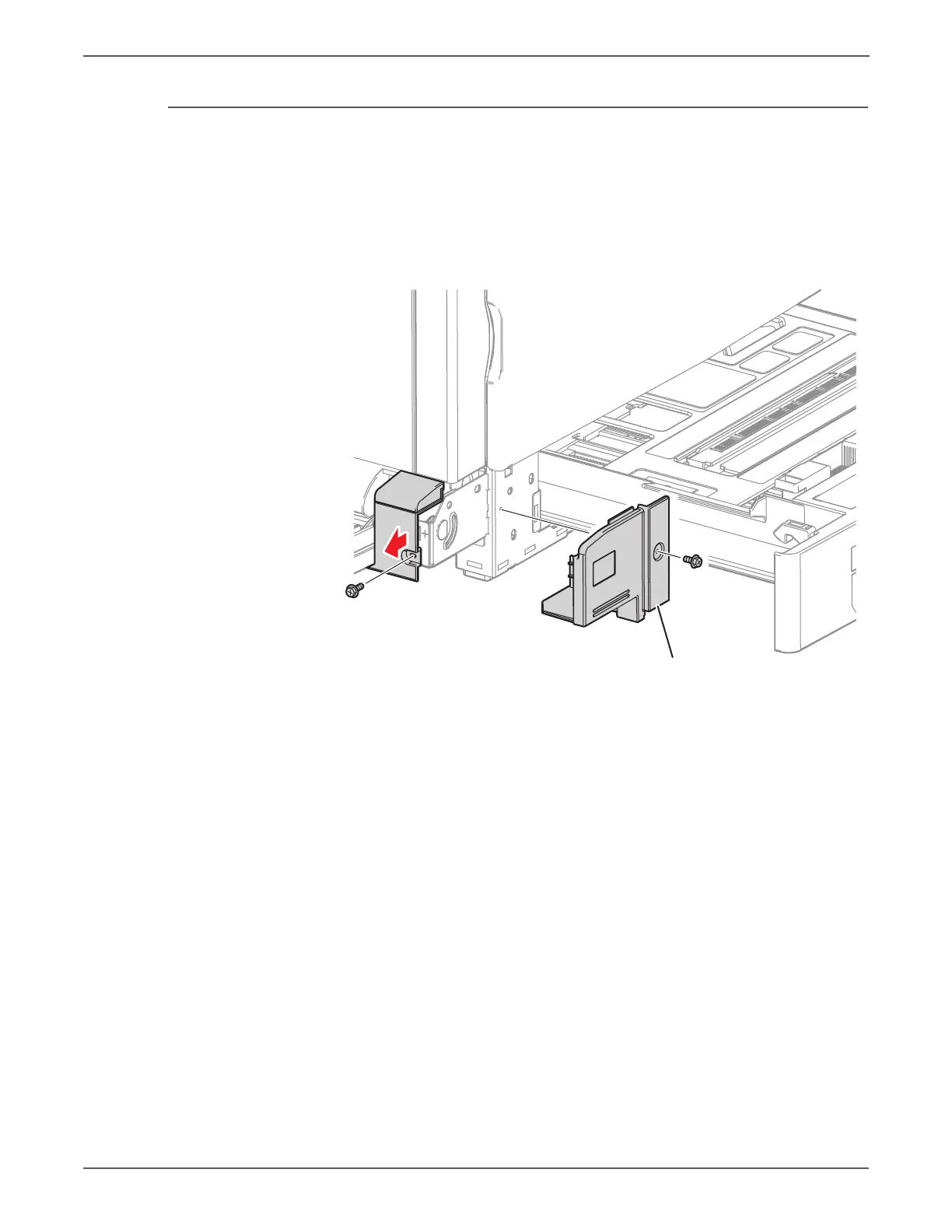

s7500-270
MPT (Tray 1) Front Cover
