Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-99
Service Parts Disassembly

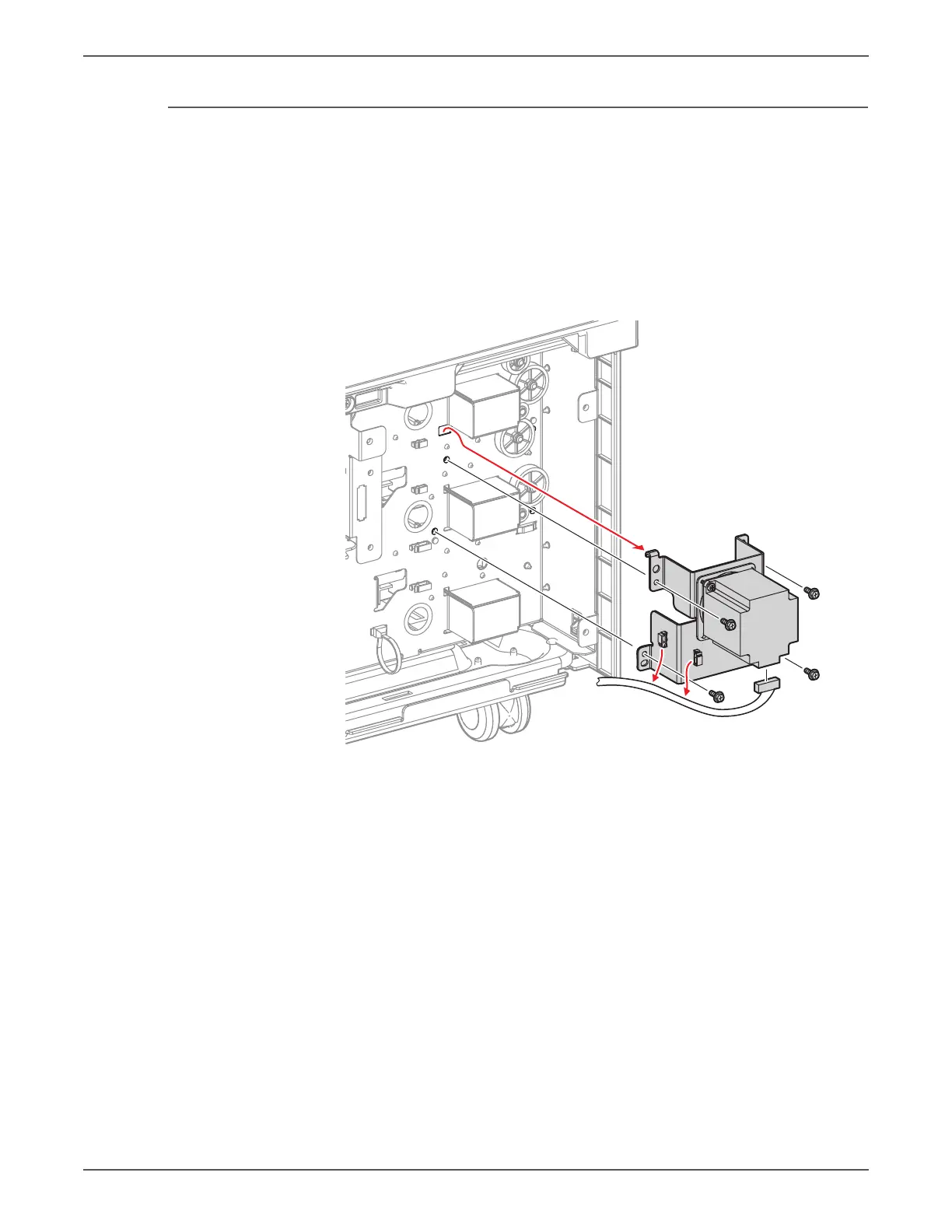

REP 10.11 TM Takeaway Motor
PL10.9.5
1. Remove the Rear Cover Assembly (REP 10.19, page 8-107).
2. Disconnect the wiring harness connector P/J226 that is connected to the TM
Takeaway Motor and release the harness from the clamps.
3. Remove 4 screws (silver, 8mm) that secure the TM Takeaway Motor to the
Tray Module (3T).
4. Release the hook of the TM Takeaway Motor from the square hole of the Tray
Module (3T) and remove the TM Takeaway Motor.
s7500-163

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
