Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-105
Service Parts Disassembly
REP 10.17 Hook/ Latch/ Handle
PL10.12.2/ PL10.12.3/ PL10.12.11
1. Remove the Left Hand Cover Assembly (REP 10.16, page 8-104).
2. Release the spring.
3. Remove 1 screw (silver, Tapped, 8mm) that secures the hook and remove the
hook while pulling on the latch.
4. Pull off the latch from the handle to remove it.

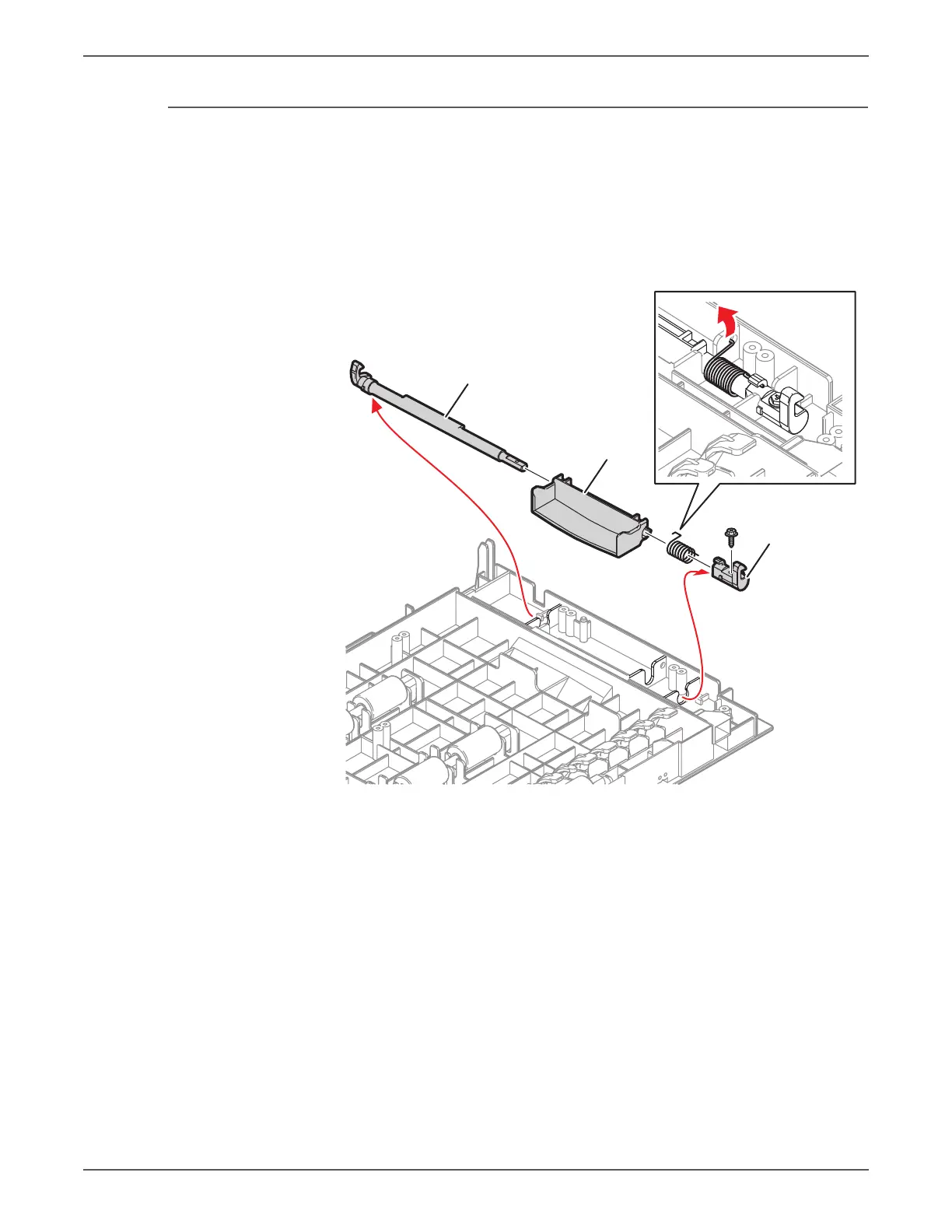

s7500-169
Hook
Handle
Latch

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
