REP 11.3 Tray 3 Feed/ Lift Up Motor
PL10.3.3
1. Remove the Tray 3 Feeder Assembly-STM (REP 11.1, page 8-112).
2. Disconnect the wiring harness connector P/J221 that is connected to the
Feed/ Lift Up Motor.
3. Remove 2 screws (silver, 6mm) that secure the Feed/ Lift Up Motor to the Tray
3 Feeder Assembly-STM and remove the Feed/ Lift Up Motor.

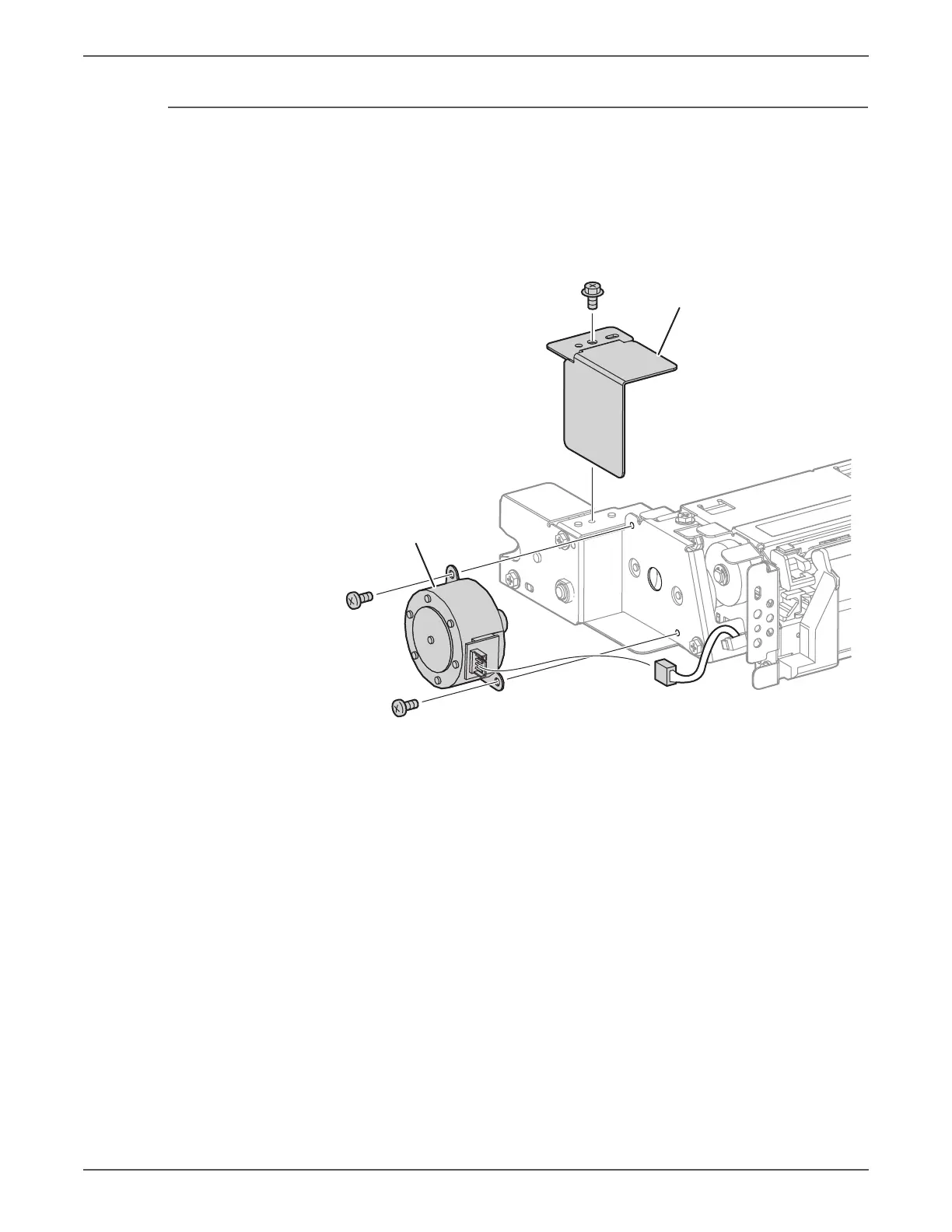

s7500-157
Feed / Lift Up Motor
Bracket
