Xerox PHASER 7500 Service Manual

8-46 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 5.3 Dispenser Pipe Assembly (C/M/Y)/ Dispenser Pipe Assembly (K)
PL5.1.9/ PL5.1.16
1. Remove the Top Cover Assembly (REP 19.2, page 8-211).
2. Remove the Deve Plate Assembly (REP 5.4, page 8-49).

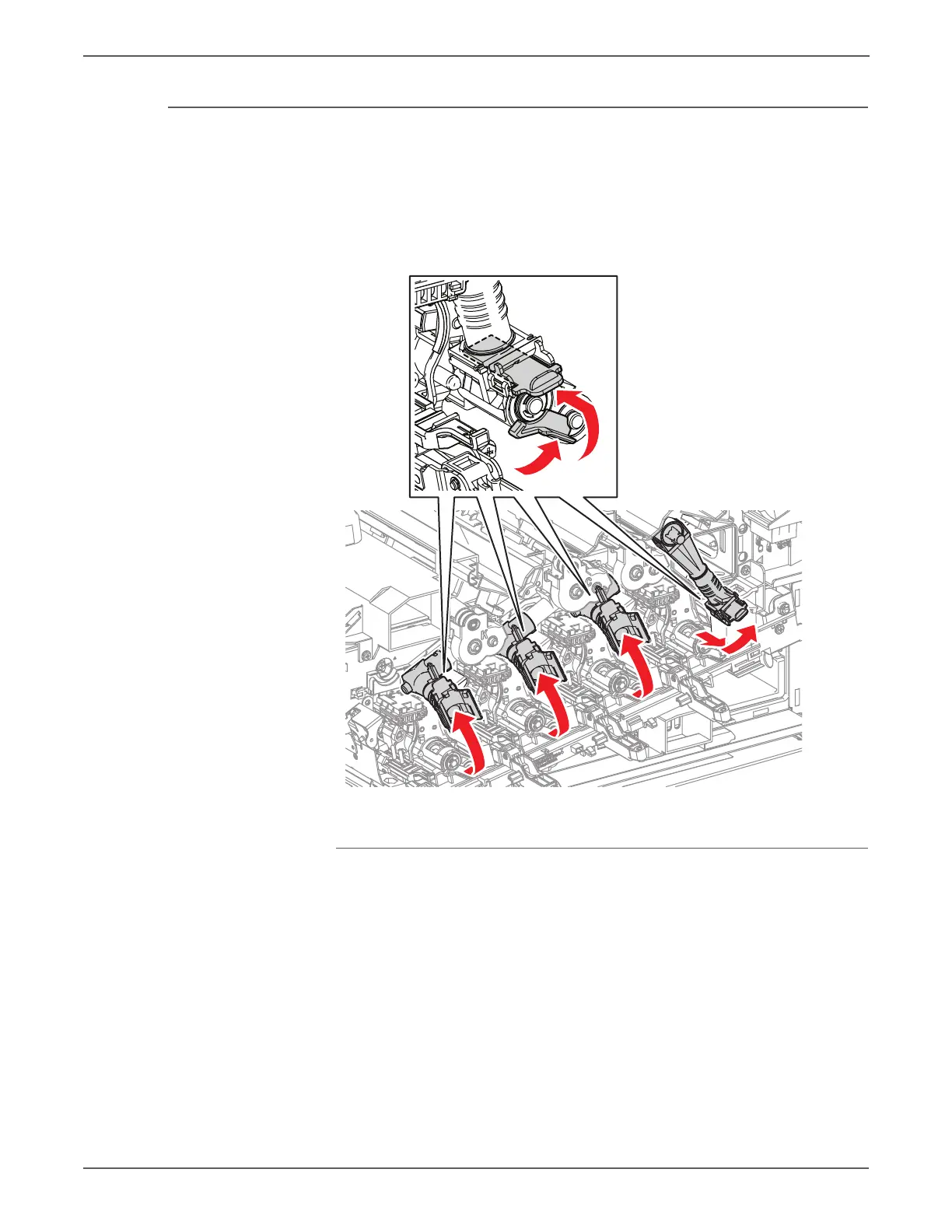

3. Raise the shutter by 90° and push it in, then close the shutters (4).
4. Turn the Lever counterclockwise and close the shutters (4).
Service Tip:
Pull the Dispenser out approximately 4” and place the Dispenser on a sheet of B
sized paper.
s7500-100
3
4

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
