Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-163
Service Parts Disassembly
REP 14.14 Duplex Motor/ Fan/ Gear Assembly
PL14.5.8/ PL14.5.9/ PL14.6.22
1. Remove the Duplex Assembly (REP 14.12, page 8-161).

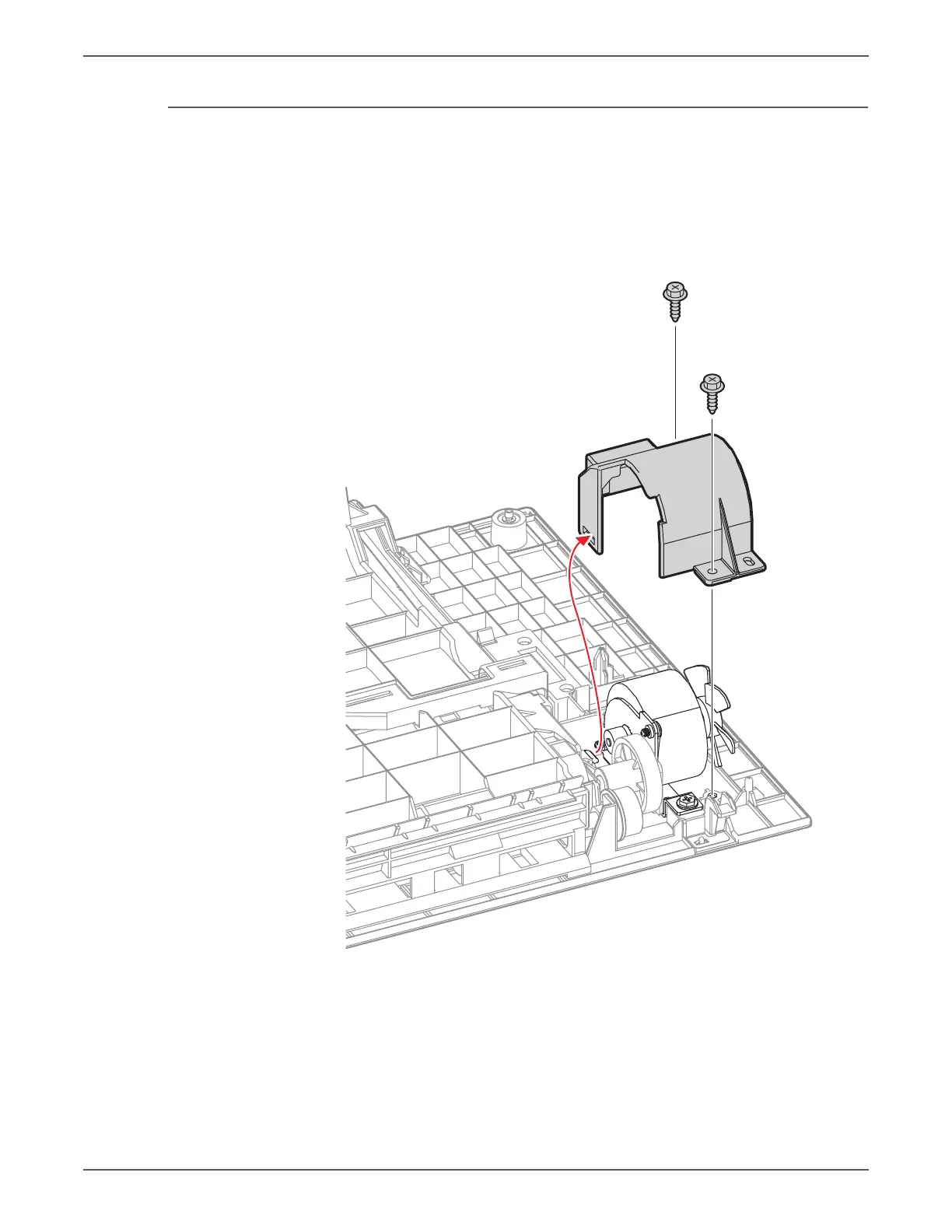

2. Remove 2 screws (silver, Tapped, 8mm) that secure the Motor Cover to the
printer.
3. Release the Motor Cover from the protrusion of the Inner Chute Assembly and
remove the Motor Cover.
s7500-223
