Xerox PHASER 7500 - REP 2.5 LPH Cable Assembly

Phaser 7500 Printer Service Manual 8-23
Service Parts Disassembly
REP 2.5 LPH Cable Assembly
PL2.2.1
1. Remove the Drum/ Deve Drive Assembly (REP 3.8, page 8-33).
2. Remove the Takeaway Clutch (REP 15.1, page 8-172).
3. Disconnect the 4 wiring harness connectors that are connected to the LPH
Rear PWB.

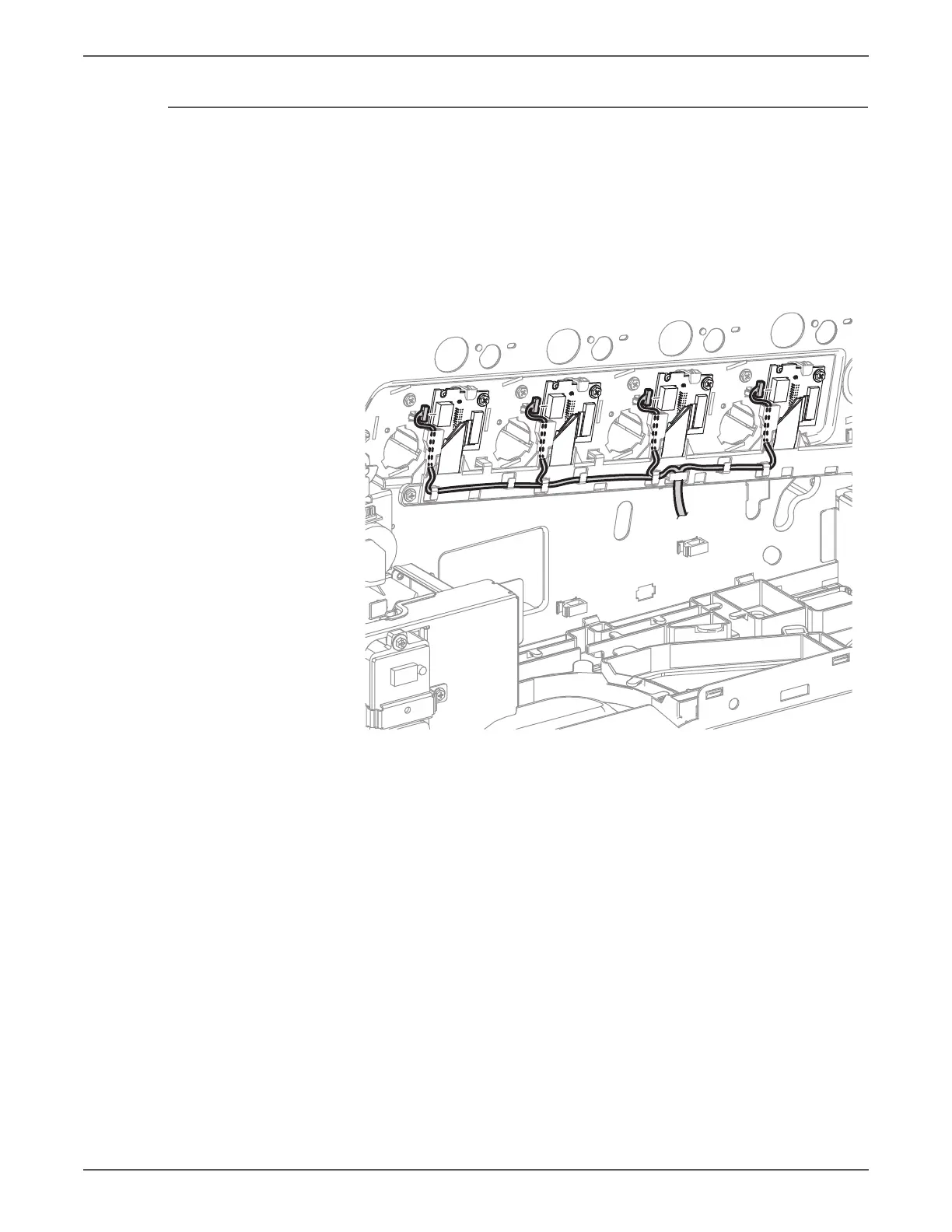

4. Remove the 4 wiring harnesses from the Cable Holders of the LPH Cable
Assembly.
s7500-078
