Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 2-5
Theory of Operation
Printing Process

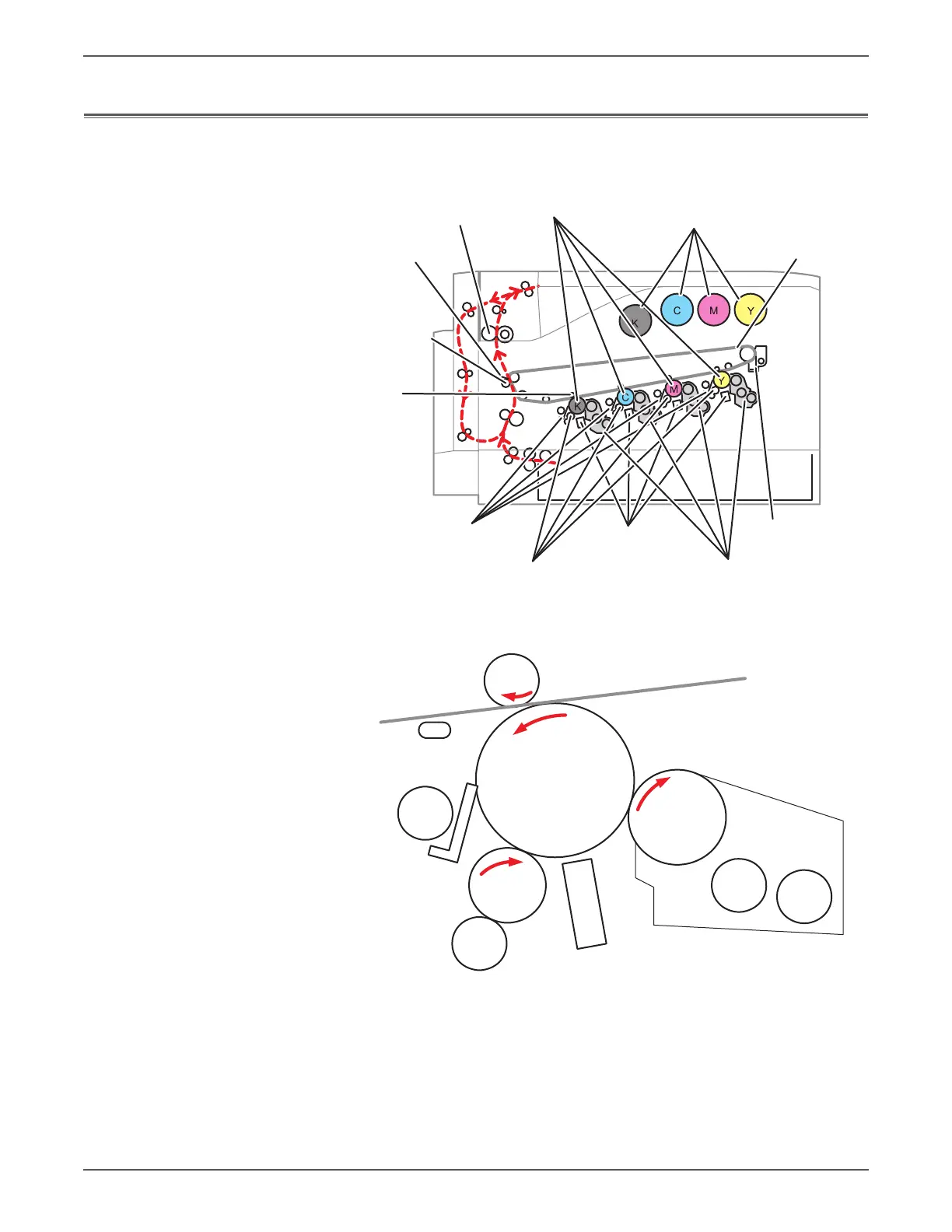

The diagrams below provide the print process for the Phaser 7500.
Fuser
[9. Fusing]
Drum
Toner Cartridges
Belt
Detack Saw
[7. Electric
Discharge]
2nd BTR
[6. Secondary
Transfer]
1st BTR
[4. Primary
Transfer]
Cleaning Blade
[5. Cleaning (Drum/BCR)]
BCR
[1. Electric Charge]
LPH
[2. Exposure]
Developer Housing
[3. Development]
Cleaning Blade
[8. Cleaning (Belt)]
s7500-339
1st BTR
Erase Lamp
Magnet Roll
Auger
Auger
Auger
LPH
Cleaning Roll
BCR
Cleaning Blade
Drum
s7500-340

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
