Xerox PHASER 7500 - Fuser; REP 7.1 Fuser Assembly

Phaser 7500 Printer Service Manual 8-67
Service Parts Disassembly
Fuser
REP 7.1 Fuser Assembly
PL7.1.1
Warning
The Fuser may be hot. Turn the printer power Off and allow at least 5 minutes
for the Fuser to cool before removing the Fuser.

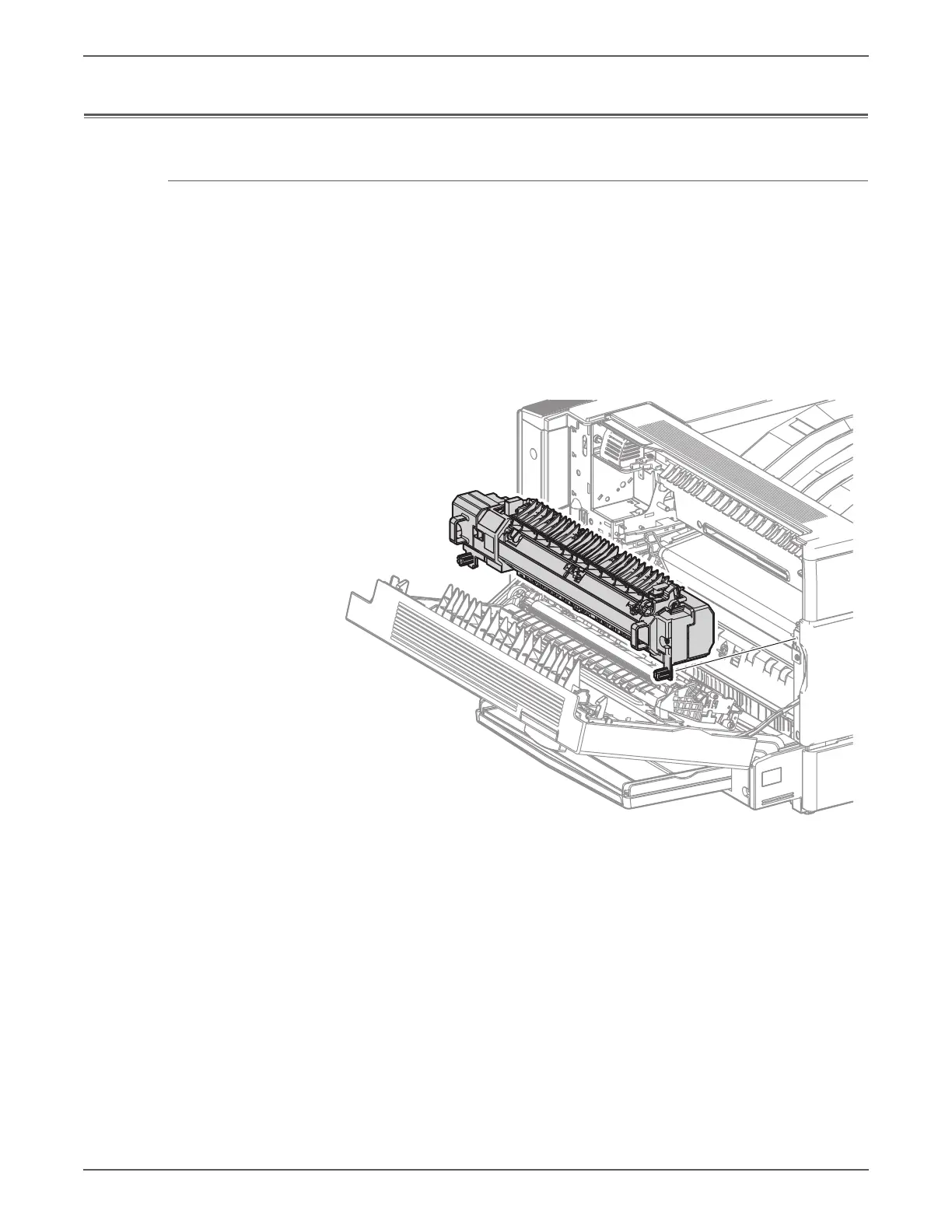

1. Open the Left Hand Cover Assembly (Door A).
2. Loosen 2 screws that secure the Fuser Assembly to the printer and remove the
Fuser Assembly.
s7500-119
