Xerox PHASER 7500 - REP 8.11 Sensor Bracket Assembly

8-80 Phaser 7500 Printer Service Manual
Service Parts Disassembly

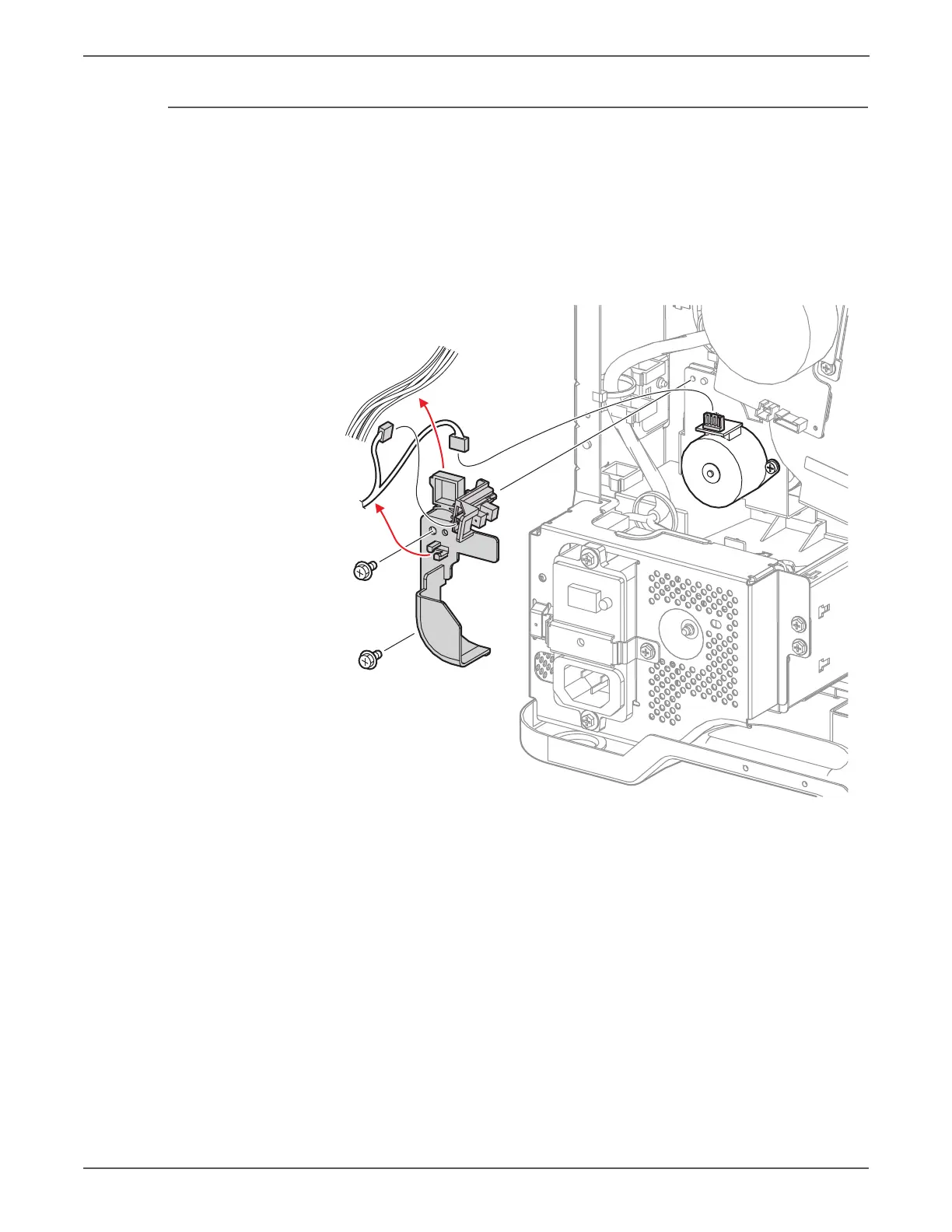

REP 8.11 Sensor Bracket Assembly
PL8.2.14
1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Disconnect the 2 wiring harness connectors that are connected to the Sensor
Bracket Assembly and the Agitator Motor Assembly.
3. Remove the wiring harness from the Sensor Bracket Assembly.
4. Remove 2 screws (silver, 6mm) that secure the Sensor Bracket Assembly and
remove the Sensor Bracket Assembly.
s7500-134
