8-134 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 13.5 Tray 1 Top Cover
PL13.2.21

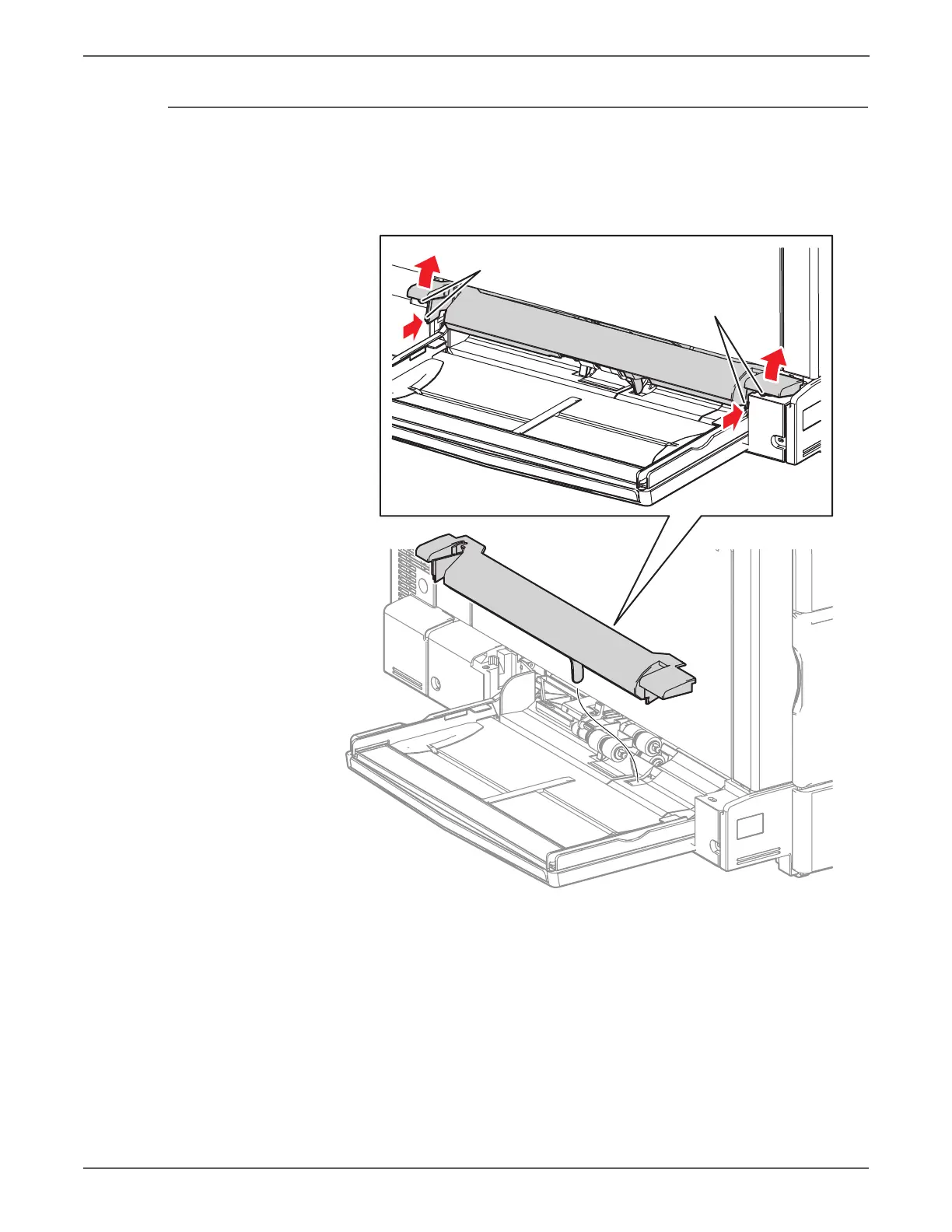

1. Insert a Flat Head Screwdriver through the gap between the edges of the Top
Cover (arrow locations in the illustration) to release the hook, and move the
Top Cover towards you and upwards to remove.
Be sure to install the Tray 1 Top Cover with the Actuator inserted into the hole.
