Xerox PHASER 7500 Service Manual

8-114 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 11.2 Tray 3 Paper Size Sensor
PL11.1.14
1. Remove the Tray Assembly from the Tray Module (1T).
2. Disconnect the wiring harness connector P/J101 that is connected to the Tray
3 Paper Size Sensor.
3. Remove 1 screw (silver, 8mm) that secures the Tray 3 Paper Size Sensor to the
Tray Module (1T).
4. Remove the Tray 3 Paper Size Sensor from the hooks at the installation area.

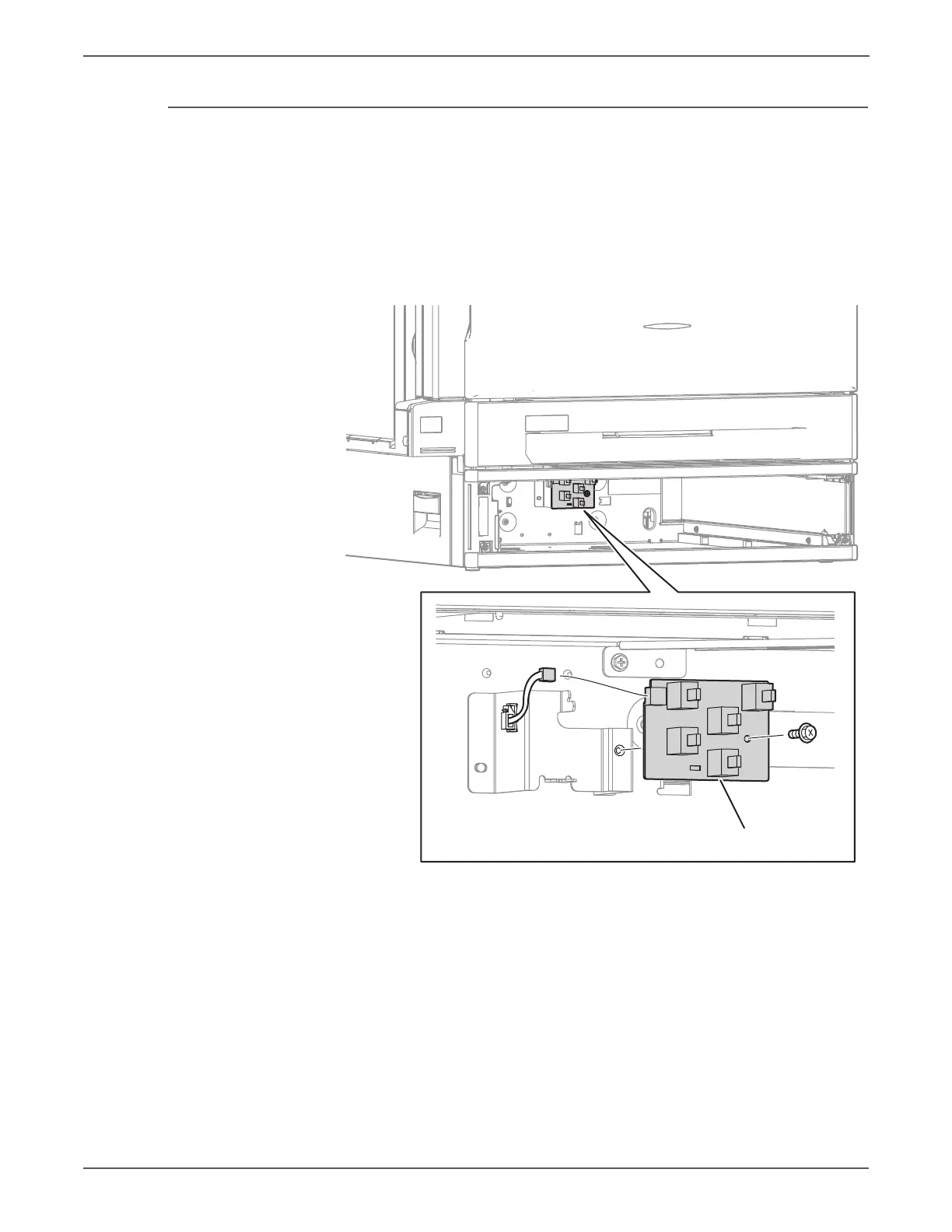

s7500-178
Tray 3 Paper Size Sensor
