Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 2-47
Theory of Operation

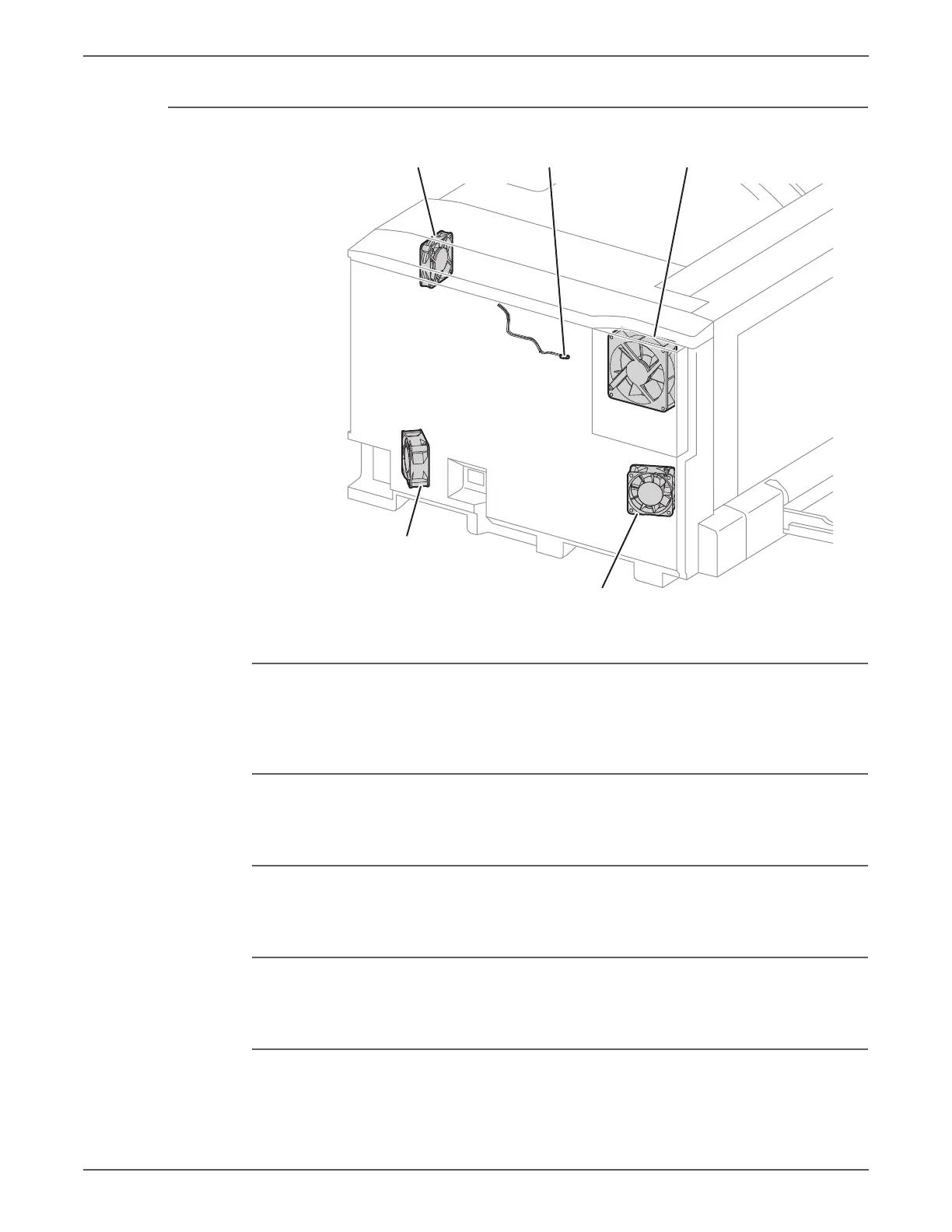

Fan
Fuser Fan (PL4.1.7)
The Fuser Fan dissipates heat in the printer and cools down the Fuser Assembly
section.
HV Fan (PL4.3.4)
The HV Fan dissipates heat in the printer and cools down the HVPS section.
LV Fan (PL18.1.13)
The LV Fan dissipates heat in the printer and cools down the LVPS section.
Drive Fan (PL18.3.17)
The Drive Fan dissipates heat in the printer and cools down the rear motor section.
NOHAD Thermistor Assembly (PL5.2.11)
The NOHAD Thermistor Assembly monitors the temperature within the printer.
s7500-380
Fuser Fan
HV Fan
Drive Fan
NOHAD Thermistor
LV Fan

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
