Xerox PHASER 7500 - REP 10.19 Rear Cover Assembly

To Next Page

To Previous Page

Phaser 7500 Printer Service Manual 8-107

Service Parts Disassembly

REP 10.19 Rear Cover Assembly

PL10.13.11

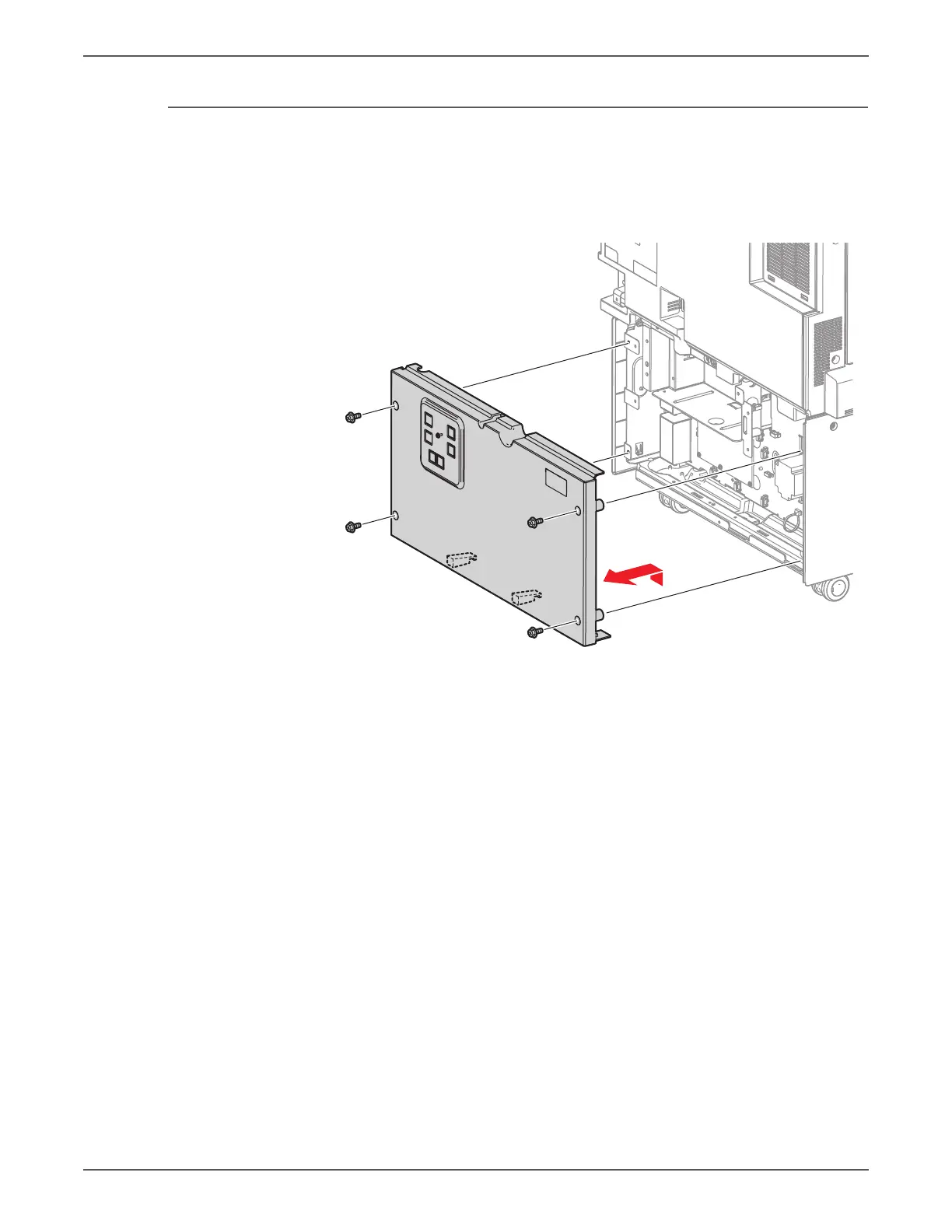

1. Remove 5 screws (silver, 8mm) that secure the Rear Cover Assembly to the

Tray Module (3T).

2. Lift the Rear Cover Assembly and remove it from the Tray Module (3T).

s7500-171
