Xerox PHASER 7500 Service Manual

8-38 Phaser 7500 Printer Service Manual
Service Parts Disassembly
NOHAD
REP 4.1 Fuser Fan
PL4.1.7
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Disconnect the wiring harness connector that is connected from the Fuser Fan,
and remove it from the Harness Guide.
3. Remove 2 screws (silver, Tapped, 32mm) that secure the Fuser Fan to the Duct
and remove the Fuser Fan.
Replacement Note
Be sure the labeled side of the Fan faces the rear of the printer.

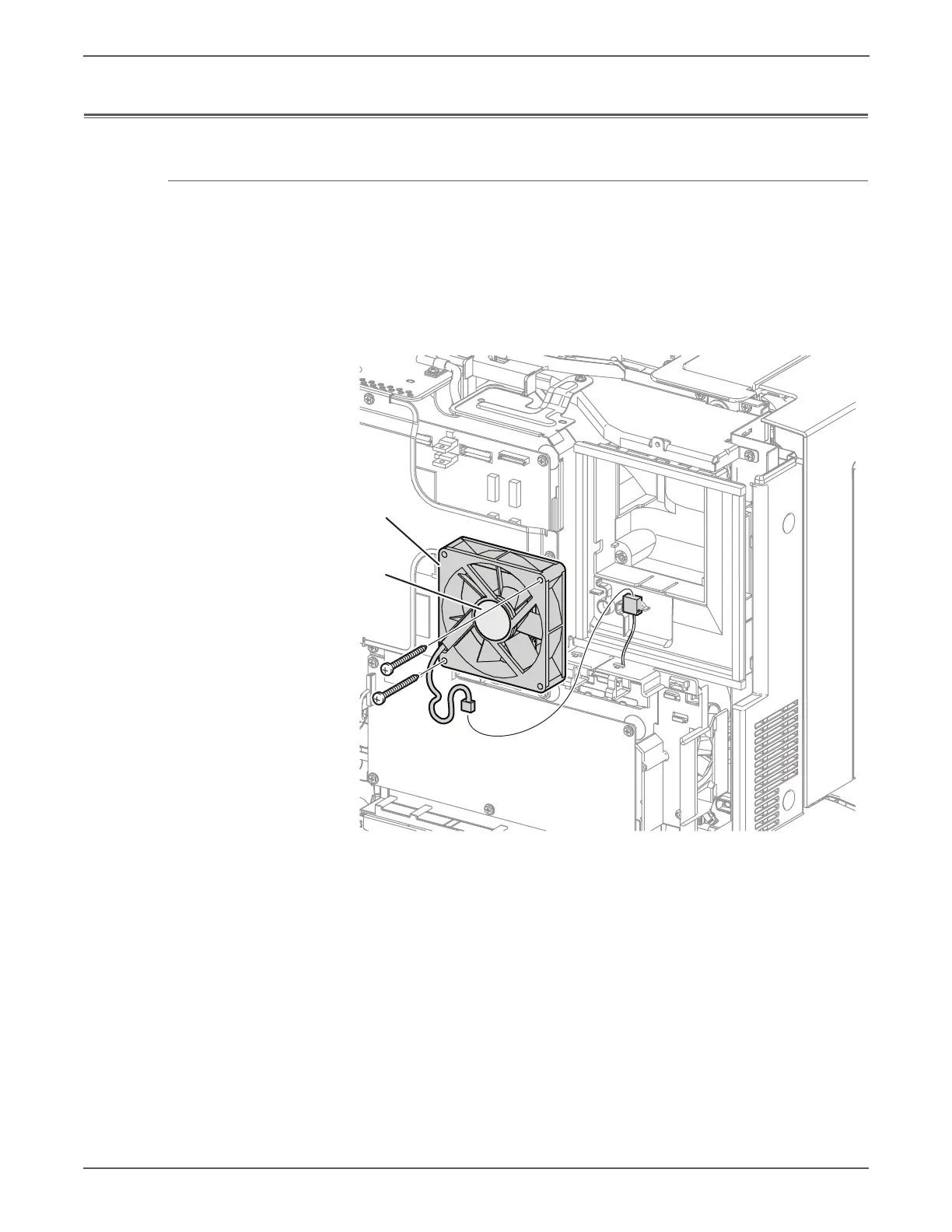

s7500-092
Fuser Fan
Label
