Phaser 7500 Printer Service Manual 8-81
Service Parts Disassembly
REP 8.12 Auger Lock Sensor
PL8.2.16
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
3. Remove the Sensor Bracket Assembly (REP 8.11, page 8-80).

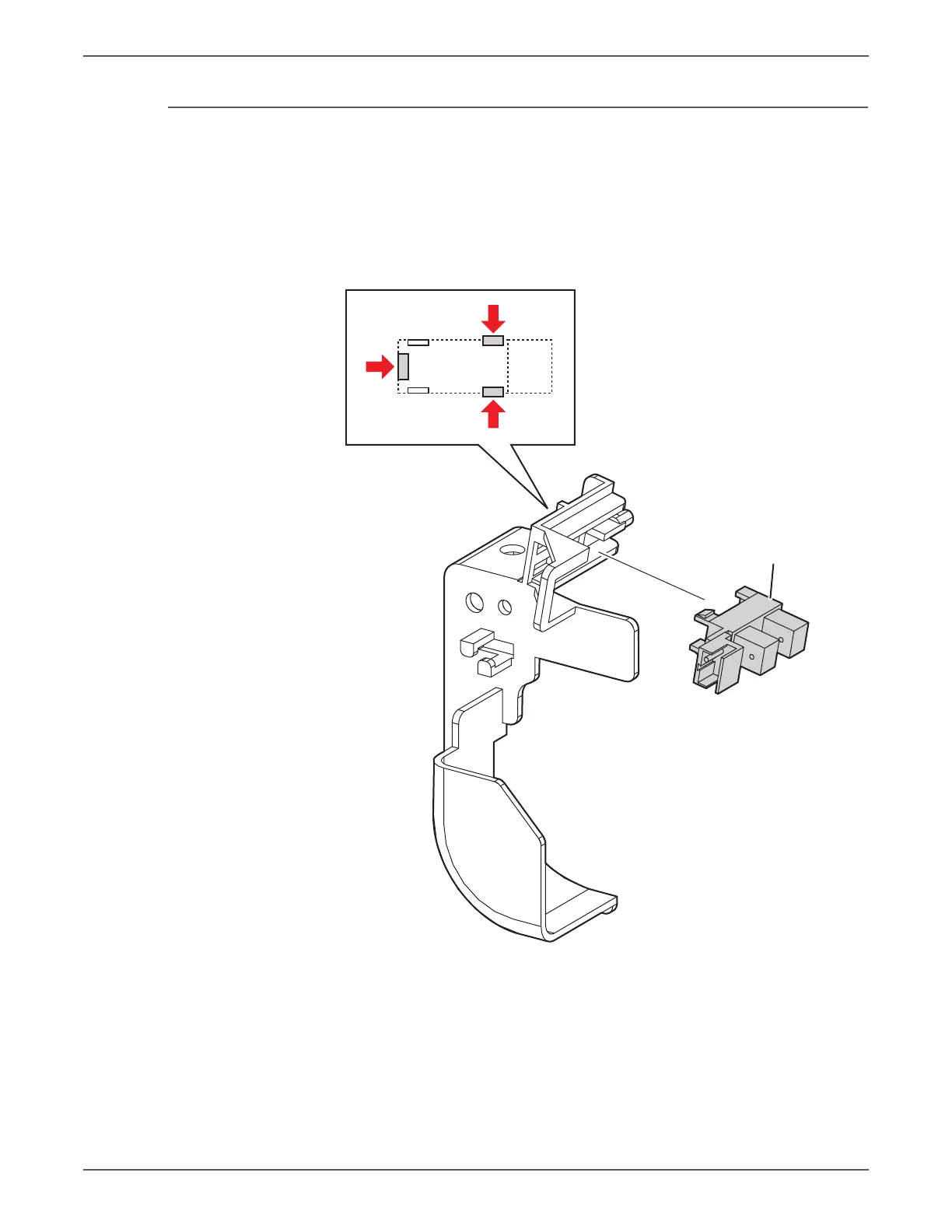

4. Release the hooks that secure the Auger Lock Sensor and remove the Auger
Lock Sensor.
s7500-135
Auger Lock Sensor
