Xerox PHASER 7500 - REP 9.10 Tray 2 Feed; Lift up Motor

Phaser 7500 Printer Service Manual 8-85
Service Parts Disassembly
REP 9.10 Tray 2 Feed/ Lift Up Motor
PL9.4.3
1. Remove the Feeder Assembly (REP 9.9, page 8-83).
2. Disconnect the wiring harness connector that is connected to the Tray 2 Feed/
Lift Up Motor.
3. Remove 2 screws (silver, 6mm) that secure the Tray 2 Feed/ Lift Up Motor to
the Feeder Assembly and remove the Tray 2 Feed/ Lift Up Motor.

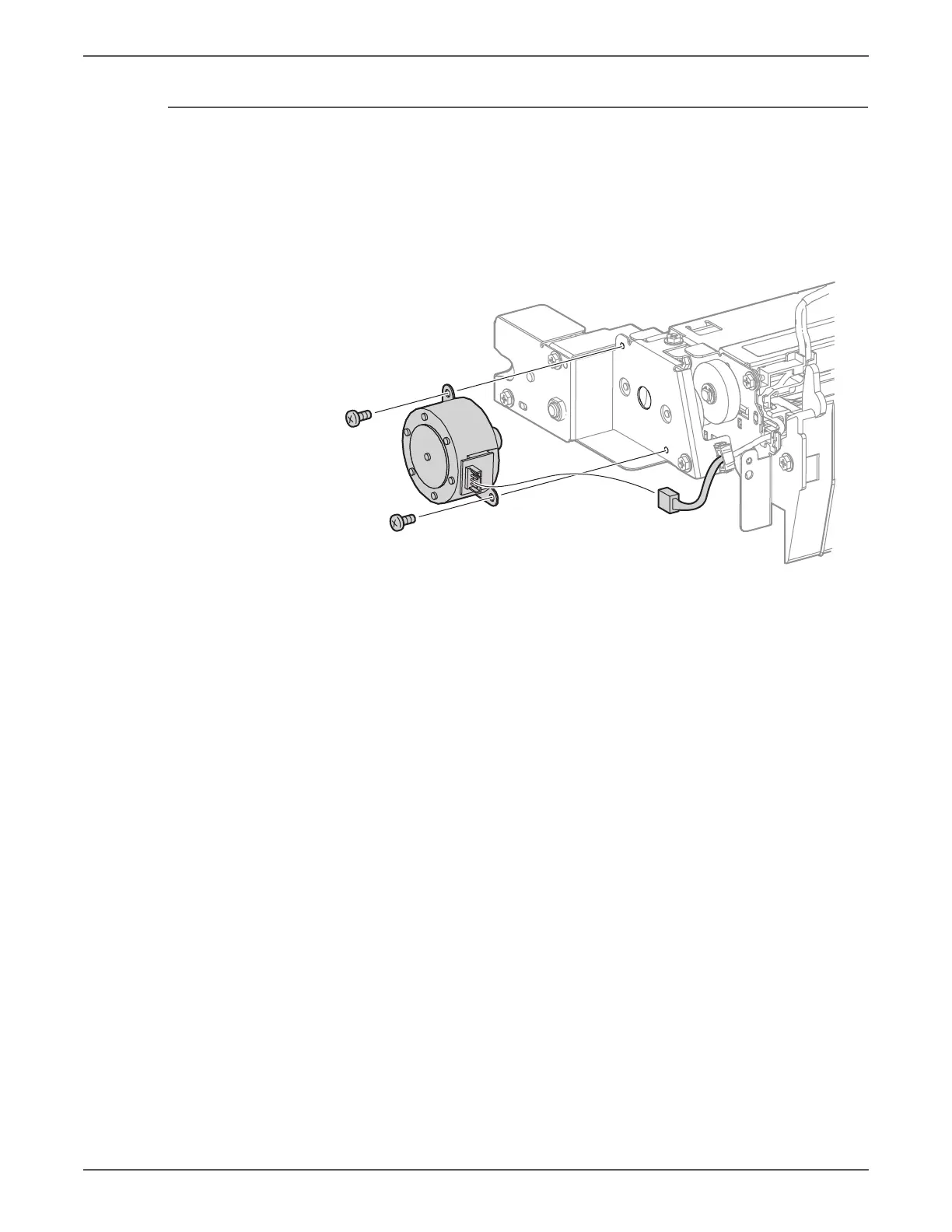

s7500-146
