8-84 Phaser 7500 Printer Service Manual
Service Parts Disassembly
6. Pull out the front side of the Tray 2 Feeder Assembly towards you to remove
the Tray 2 Feeder Assembly from the printer.

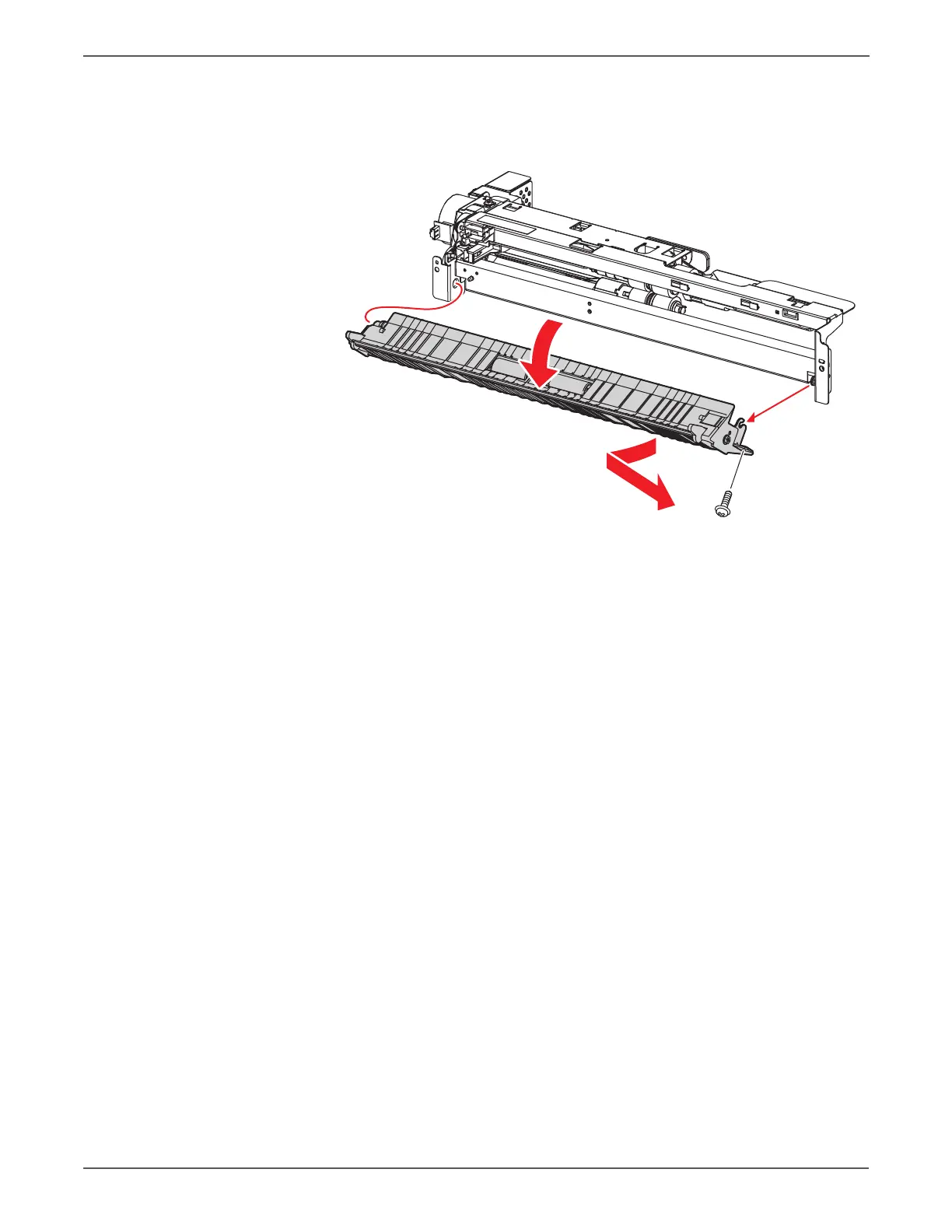

7. Loosen 1 screw (silver, 8mm) that secures the Chute Assembly and remove the
Chute Assembly from the Tray 1 Feeder Assembly.
s7500-145
