Xerox PHASER 7500 - Parts List 9.3 Tray 2 Feeder

9-46 Phaser 7500 Printer Service Manual
Parts List
Parts List 9.3 Tray 2 Feeder
Parts List 9.3 Tray 2 Feeder
Item Description Part Number
1 Tray 2 Feeder Assembly (PL 9.4) (REP 9.9, page 8-83) 059K55044
2 Chute Feeder Assembly (items 3-8) 054K35142
3Chute
4 Pinch Guide
5Spacer
6Spring
7Pinch Shaft
8Pinch Roll

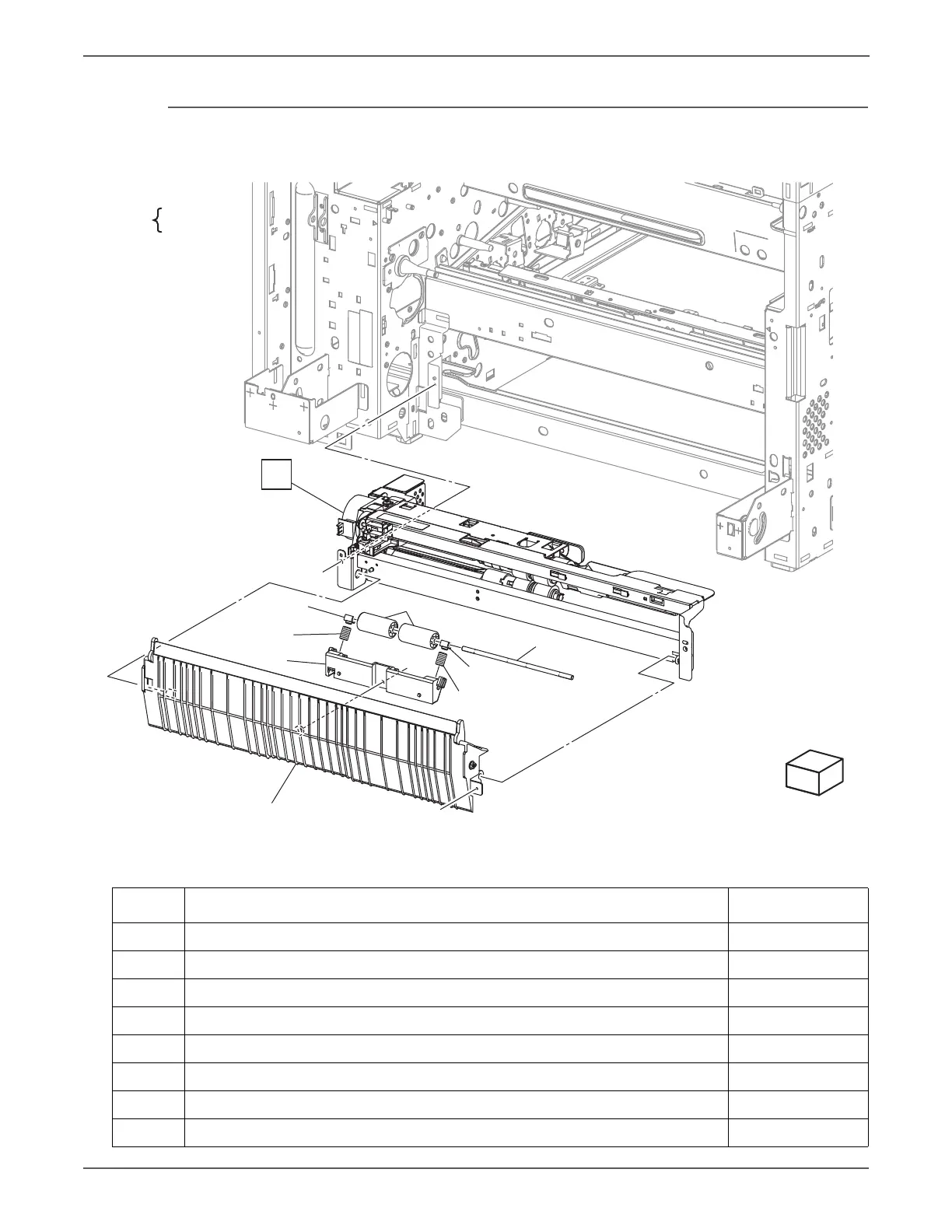

s7500-069
Right
Front
5
6
5
6
PL9.3
AJ
AJ
AJ
(PL9.4)
3
4
8
7
3-8
2
1
