Xerox PHASER 7500 - REP 11.15 STM L;H Cover Interlock Switch

Phaser 7500 Printer Service Manual 8-125
Service Parts Disassembly
REP 11.15 STM L/H Cover Interlock Switch
PL11.6.5

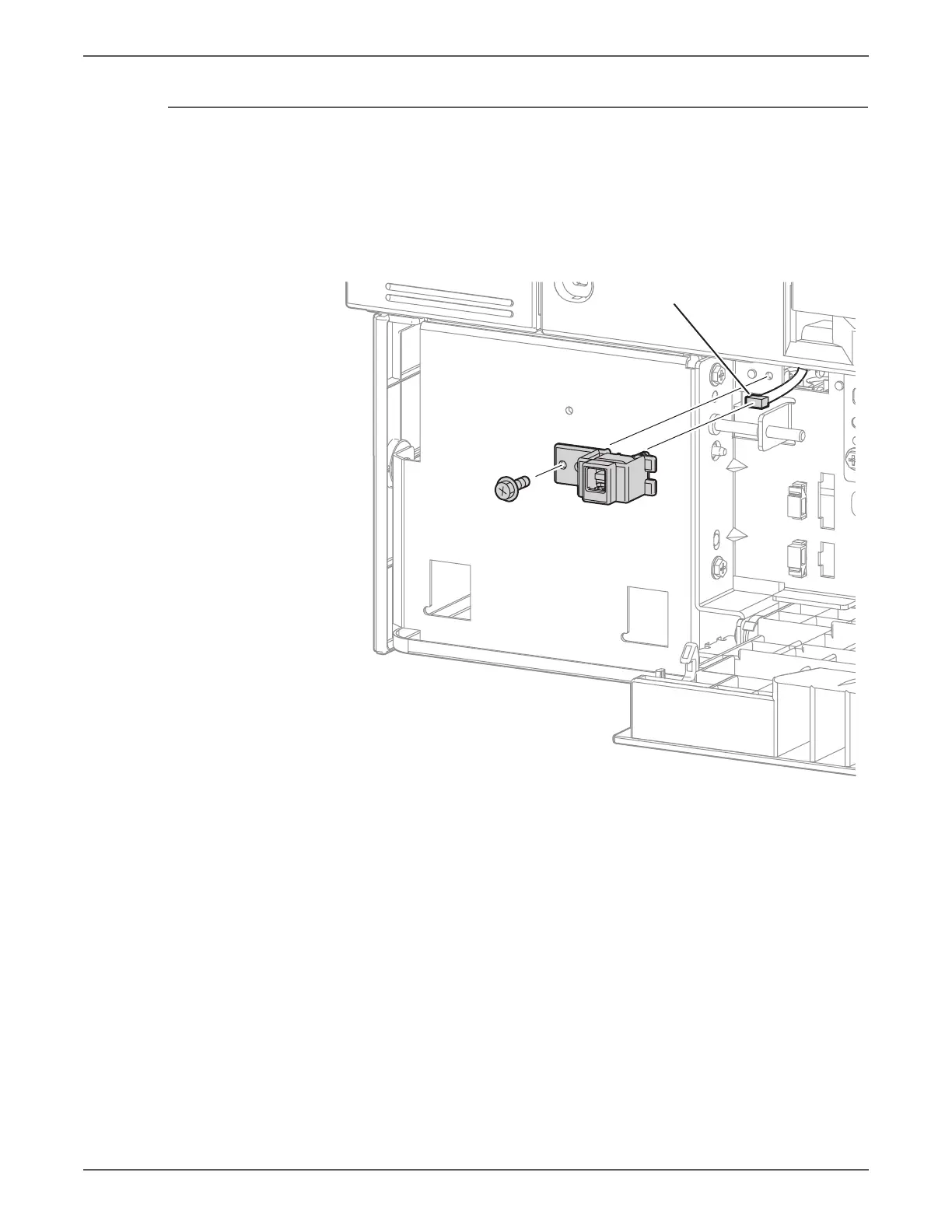

1. Remove the Left Cover-STM (REP 11.16, page 8-126).
2. Remove 1 screw (silver, 8mm) that secures the Bracket (PL 11.6.18) to the Tray
Module (1T).
3. Disconnect the wiring harness connector P/J104 that is connected to the STM
L/H Cover Interlock Switch and remove the Bracket.
s7500-186
P/Jxx
