Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-147
Service Parts Disassembly

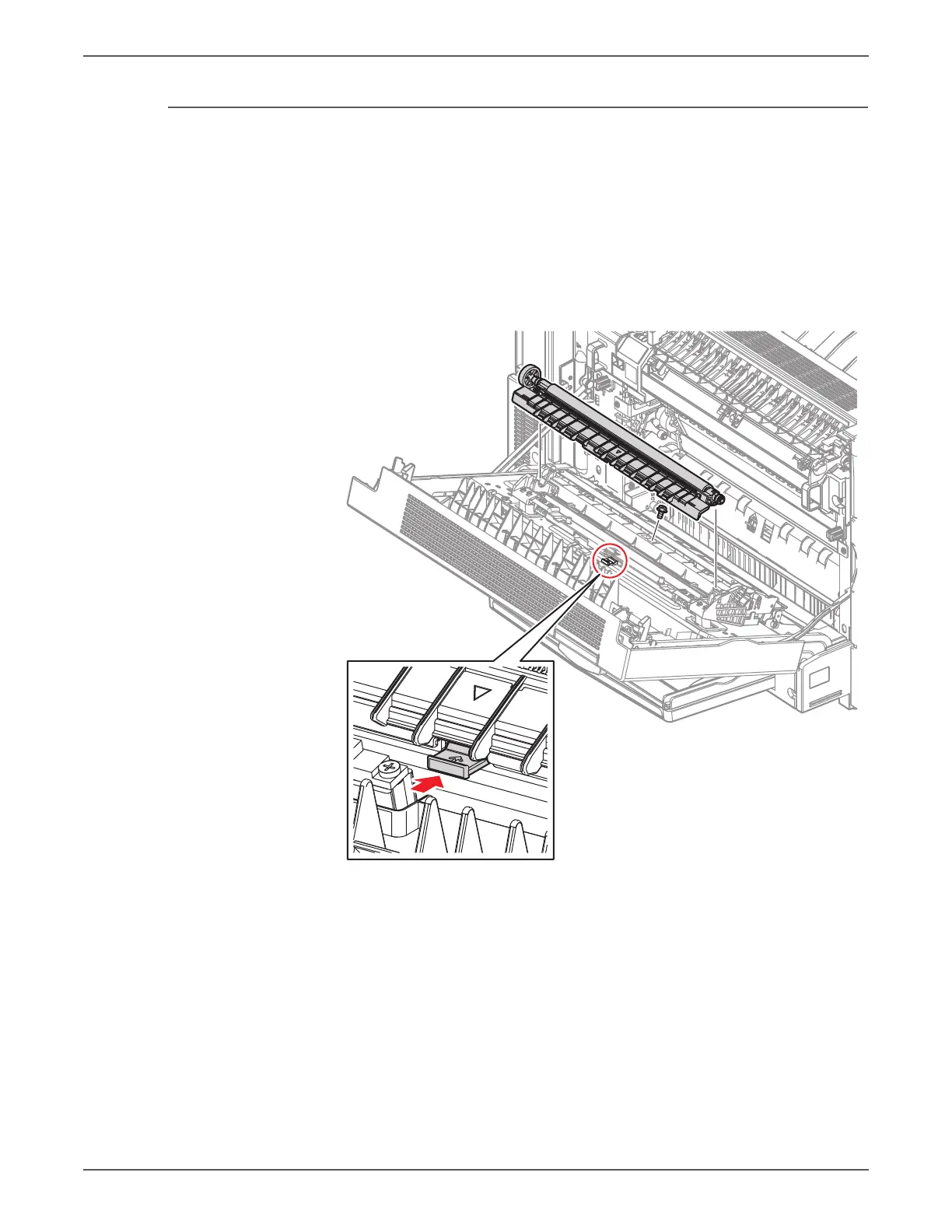

REP 14.2 2nd BTR Assembly
PL14.2.1
Caution
Do not touch the Roll surface of the 2nd BTR Assembly.
1. Open the Left Hand Cover Assembly.
2. Remove 1 screw (silver, 8mm) that secures the Lever to the Left Hand Cover
Assembly.
3. Press the Lever in the direction of the arrow to remove the 2nd BTR Assembly.
s7500-210

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
