Xerox PHASER 7500 Service Manual

8-102 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 10.14 Tray 3 Feed Out Sensor
PL10.11.11
1. Remove the T/A Roll 4/5 (REP 10.15, page 8-103).
2. Disconnect the wiring harness connector P/J108 that is connected to the Feed
Out Sensor.
3. Remove 1 screw (silver, 8mm) that secures the Sensor Guide to the Tray
Module (3T) and remove the Sensor Guide.
4. Release the 4 hooks that secure the Feed Out Sensor to the Sensor Guide and
remove the Feed Out Sensor.

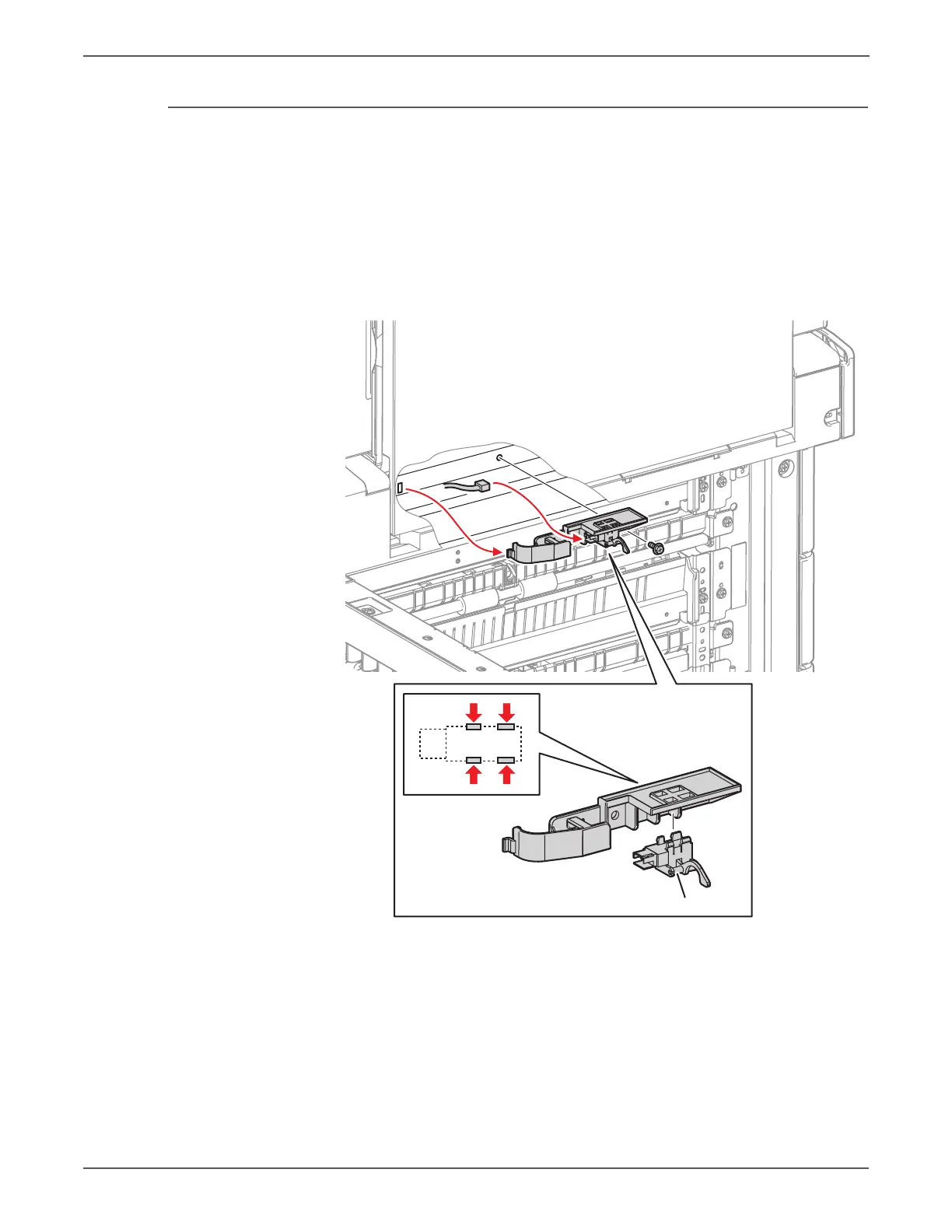

s7500-166
Feed Out Sensor
