REP 10.23 Tray Module (3T) (1500-Sheet Feeder)
PL10.1.20
Warning
The printer is heavy and must be lifted by three people. Use safety lifting and
handling techniques when moving the printer (refer to “Moving the Printer” on
page xxvii).
1. Remove the Tray Assembly from the printer.
2. Release the clamp and remove the harness.
3. Disconnect the wiring harness connector that connects the Tray Module (3T)
to the printer.
4. Remove the 2 Docking screws at the front that connect the Tray Module (3T)
to the printer, lift up the printer and remove the Tray Module (3T).

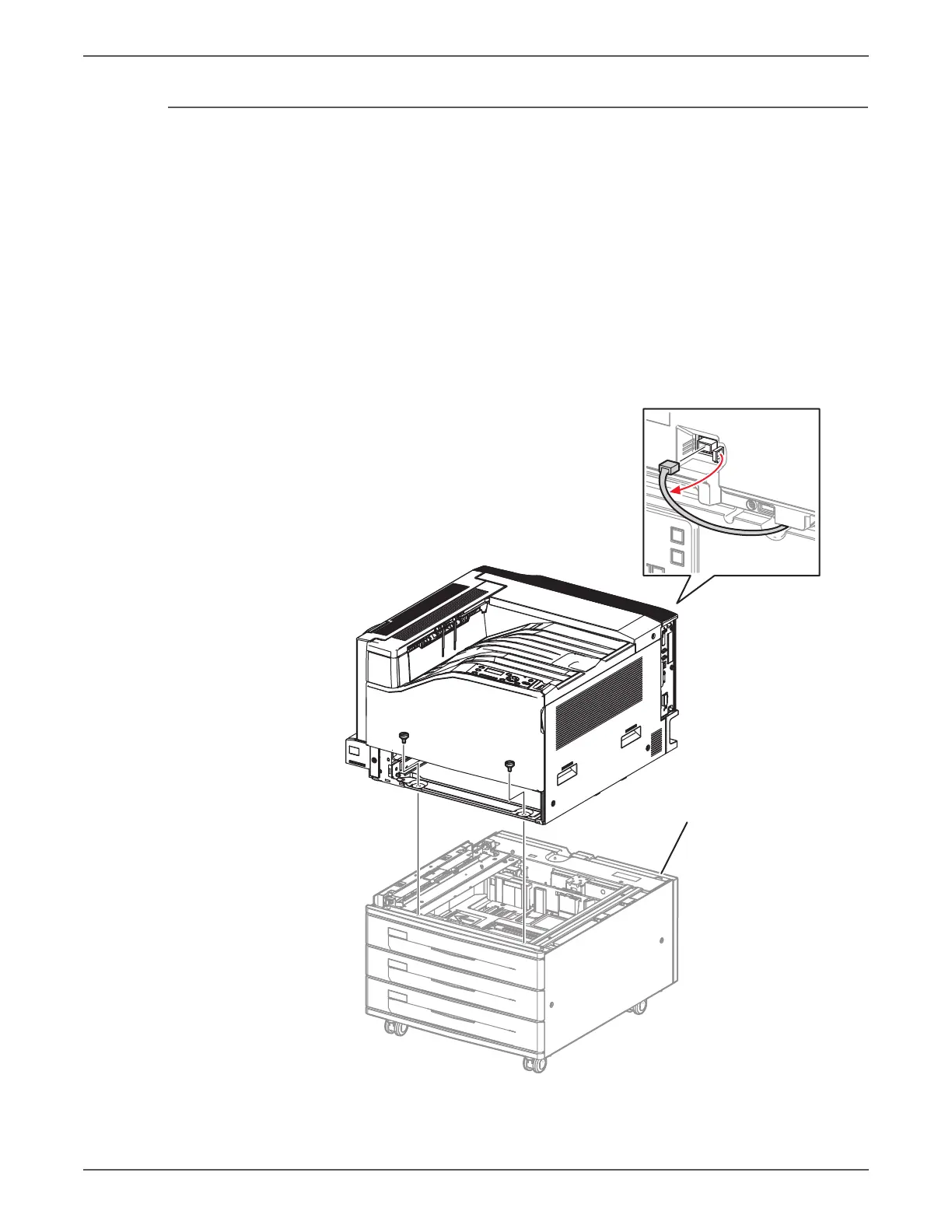

s7500-175
Tray Module (3T)
