Xerox PHASER 7500 Service Manual

8-156 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 14.9 2nd BTR Contact Retract Sensor
PL14.4.7
Caution
Do not touch the Roll surface of the 2nd BTR Assembly.
1. Remove the 2nd BTR Assembly (REP 14.2, page 8-147).
Note
When removing the screws in the following step, be careful not to loose the
spring.
2. Remove 4 screws (silver, 4mm) that secure the 2nd BTR Housing Assembly to
the Left Hand Cover Assembly.
3. Remove 2 screws (silver, 6mm) that secure the 2 Brackets to the Left Hand
Cover Assembly and remove the 2 Brackets together with the 2nd BTR
Housing Assembly.

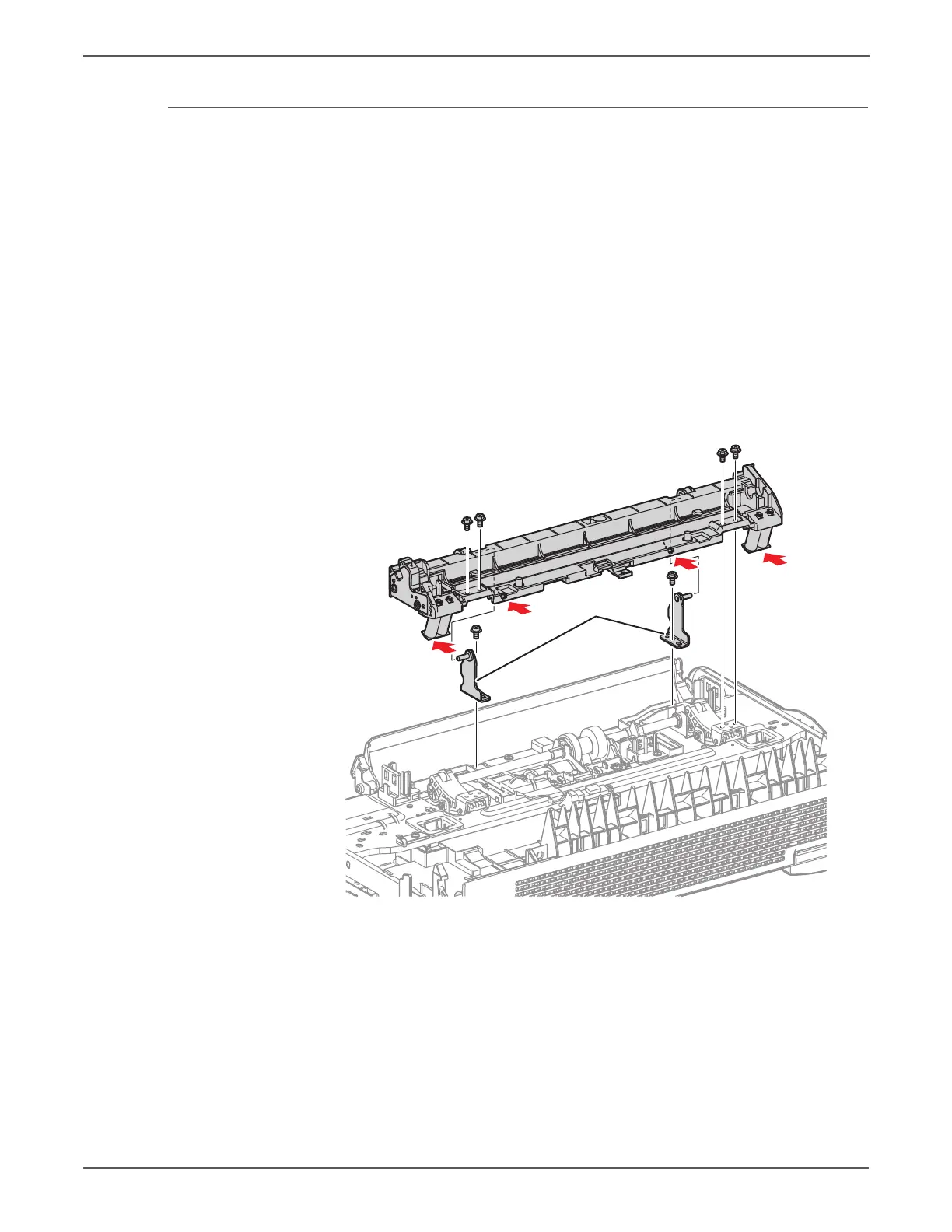

s7500-216
A
A
B
B
Brackets
