Xerox PHASER 7500 Service Manual

8-148 Phaser 7500 Printer Service Manual
Service Parts Disassembly

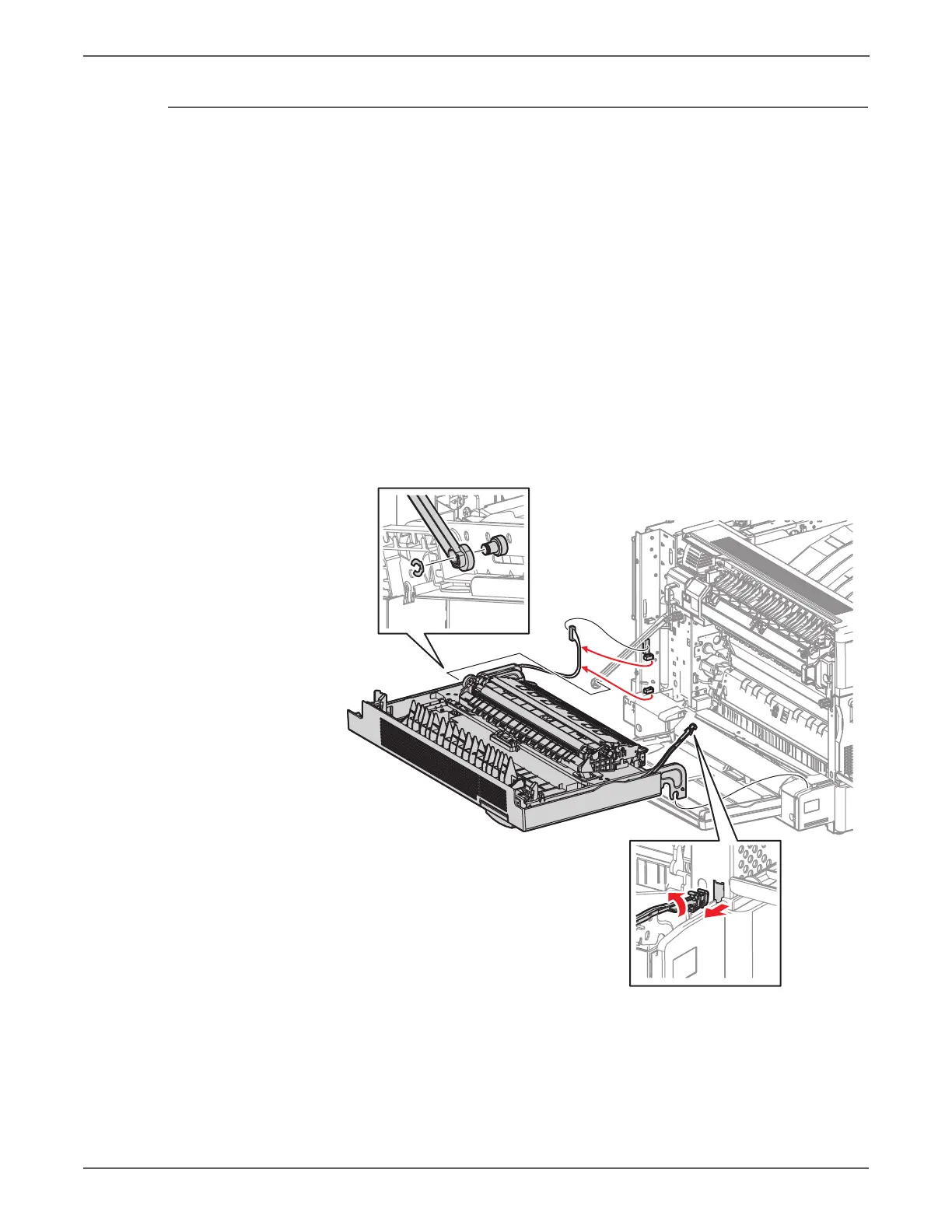

REP 14.3 L/H Cover Assembly
PL14.2.2
Caution
Do not touch the Roll surface of the 2nd BTR Assembly.
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Remove the Left Rear Cover (REP 19.4, page 8-215).
3. Remove the wiring harness that is connected to the Left Hand Cover Assembly
from the 2 clamps that secure it.
4. Disconnect the wiring harness connector that is connected to the Left Hand
Cover Assembly.
5. Remove the KL Clip that secures the Rear Support at the rear, and remove the
Rear Support from the Left Hand Cover Assembly.
6. Turn the Front Support at the front counterclockwise by 90° and remove the
Front Support from the hole of the Frame.
7. Lift up the Left Hand Cover Assembly while keeping it horizontal and remove it
from the printer.
s7500-211

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
