8-112 Phaser 7500 Printer Service Manual
Service Parts Disassembly
500-Sheet Feeder (Option)
REP 11.1 Tray 3 Feeder Assembly STM/ Feed Out Chute
PL11.1.4/ PL11.1.5
1. Remove the Tray Assembly from the Tray Module (1T).
Note
In the following step, if the Chute cannot be moved towards the rear, DO NOT
force it to move because that is already the correct position.
2. Slide the inner upper (looking from the Tray Assembly insertion opening)
Chute towards the rear until it stops.
3. Remove 1 screw (silver, 8mm) that secures the Bracket Assembly and remove
the Bracket Assembly.
4. Release the clamps that secure the wiring harness that is connected to the
Tray 3 Feeder Assembly-STM and disconnect the wiring harness connectors (P/
J661, P/J669).
5. Remove 3 screws (silver, 8mm) that secure the Tray 3 Feeder Assembly-STM to
the Tray Module (1T).
6. Pull out the front side of the Tray 3 Feeder Assembly-STM towards you to
remove the Tray 3 Feeder Assembly-STM from the Tray Module (1T).

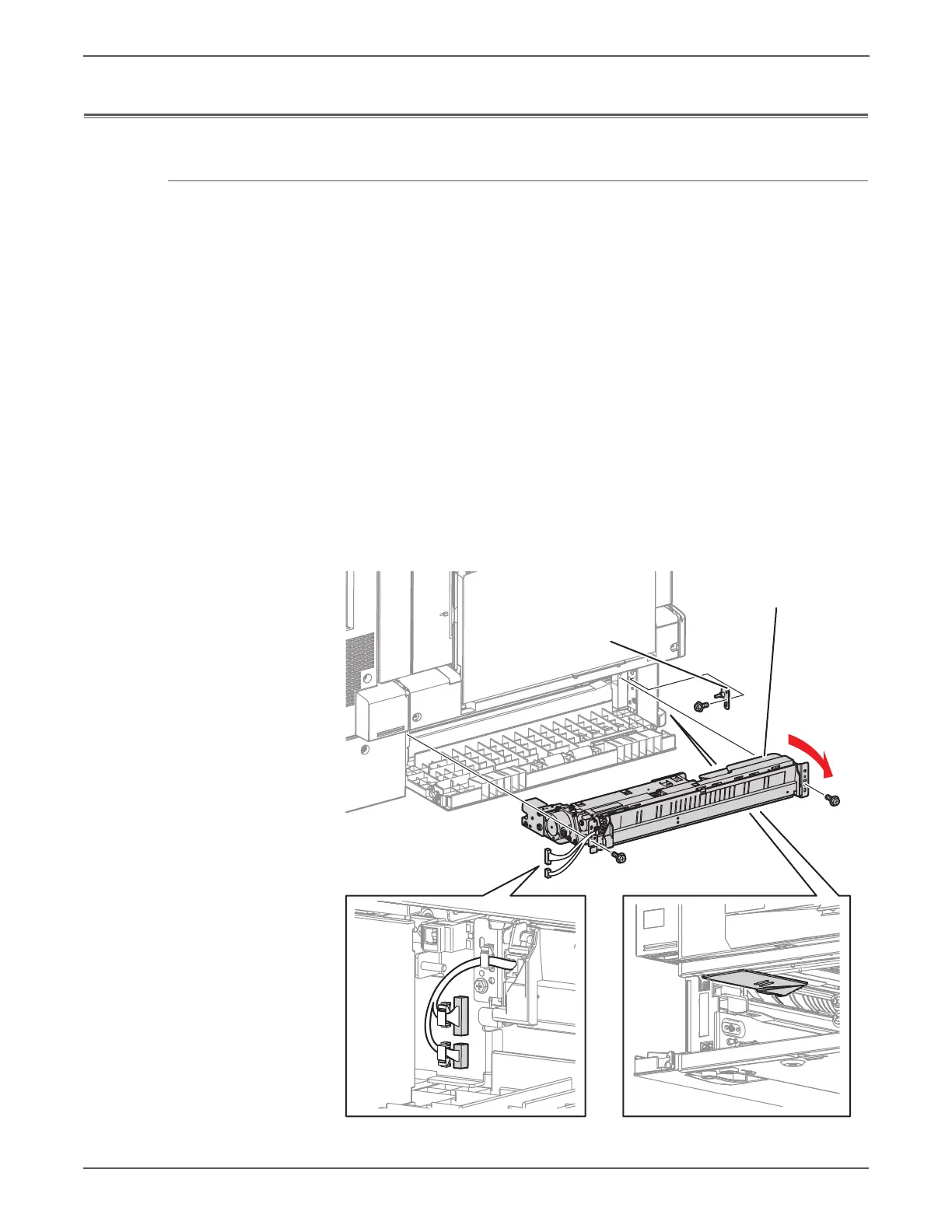

Tray 3 Feeder Assembly
Bracket Assembly
s7500-176
