Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-205
Service Parts Disassembly

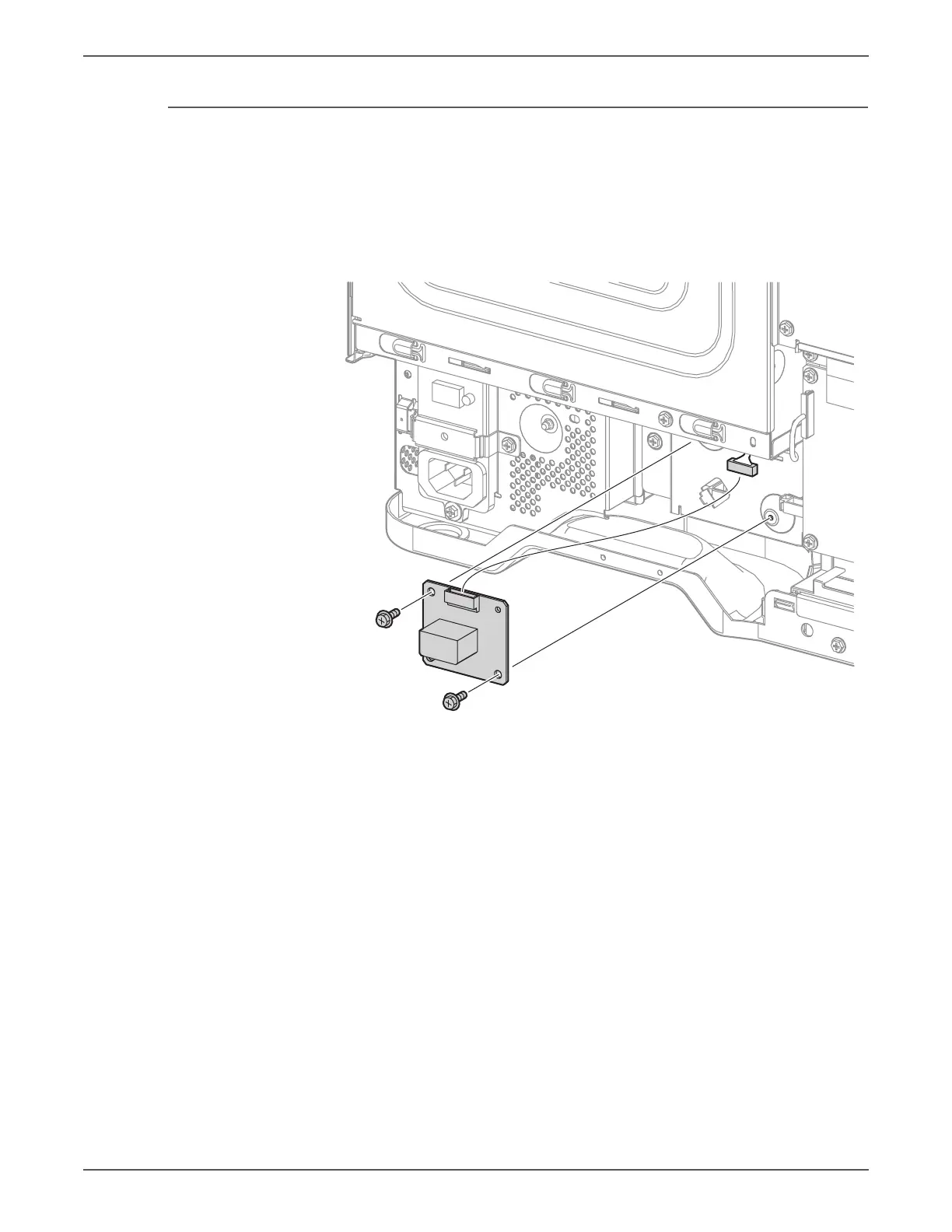

REP 18.14 TM Relay PWB
PL18.3.11
1. Remove the Top Rear Cover and the Rear Cover (REP 19.6, page 8-217).
2. Disconnect the wiring harness connector that is connected to the TM Relay
PWB.
3. Remove 2 screws (silver, 6mm) that secure the TM Relay PWB to the PWB
Chassis Unit and remove the TM Relay PWB.
s7500-261
