Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-169
Service Parts Disassembly

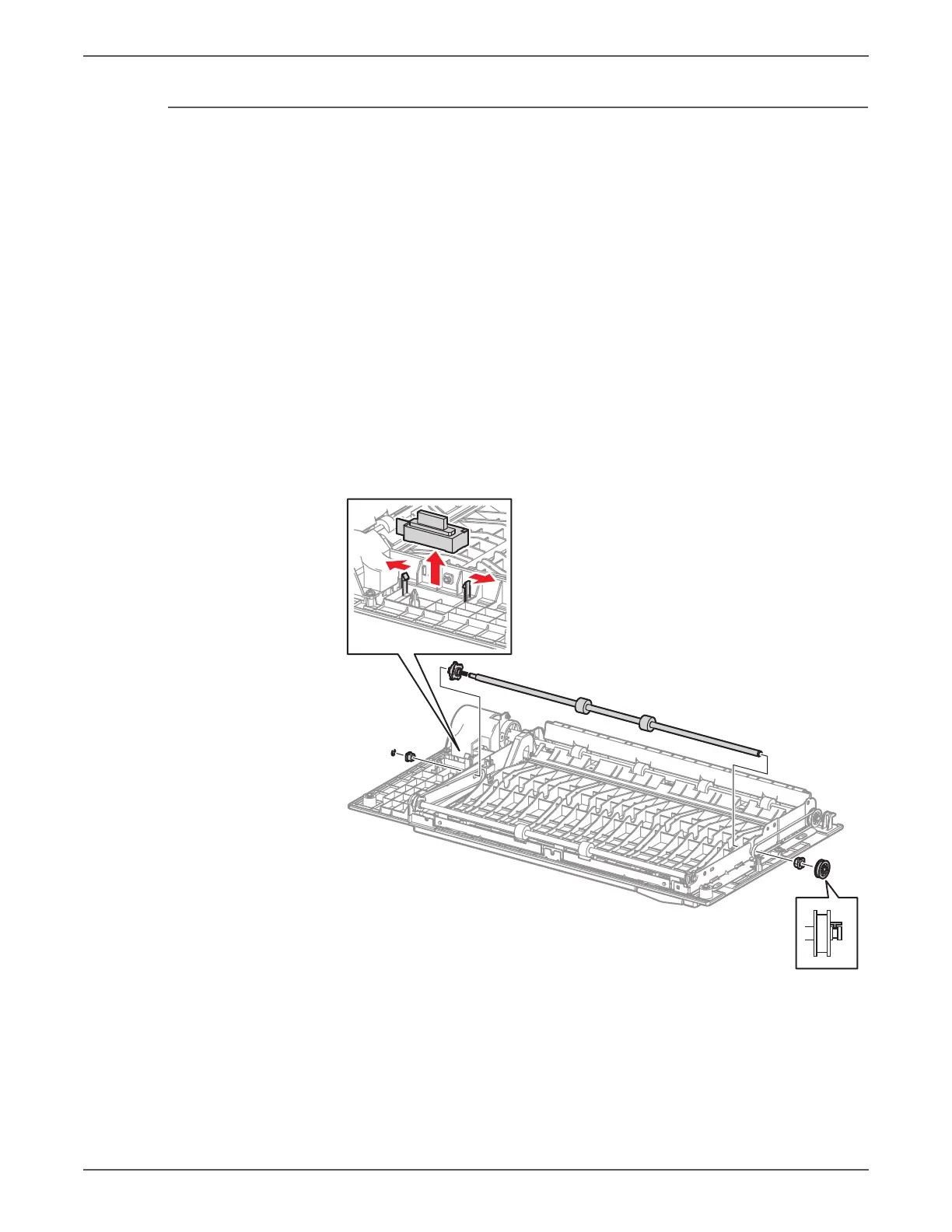

REP 14.18 Duplex Roller 2
PL14.6.13
1. Remove the Duplex Assembly (REP 14.12, page 8-161).
2. Remove the Inner Chute Assembly (REP 14.15, page 8-165).
Note
Do not apply excessive force when performing the following step, because the
holder is to be removed with the Harness Holder still connected.
3. Release the 2 hooks that secure the Duplex Assembly and remove the Harness
Holder.
4. Remove the E-ring that secures the Sleeve Bearing at the rear belt and remove
the Sleeve Bearing.
5. Release the hook of the pulley and remove it.
6. Remove the Sleeve Bearing.
7. While removing the rear belt from the pulley, remove the Duplex Roller 2 from
the Duplex Assembly.
8. Remove the pulley from the Duplex Roller 2.
s7500-231

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
