Xerox PHASER 7500 - Registration; Parts List 15.1 Registration (1 of 2)

9-96 Phaser 7500 Printer Service Manual
Parts List
Registration

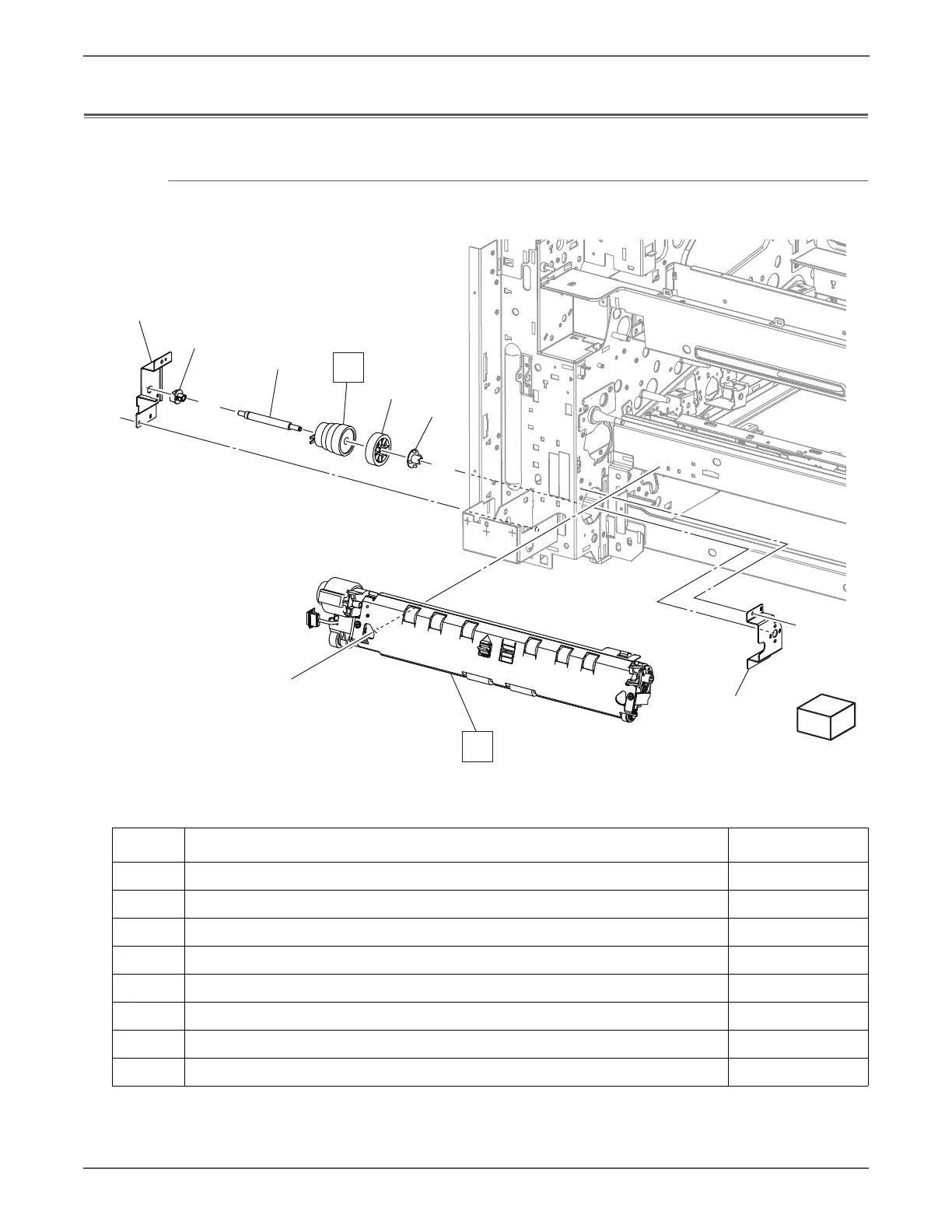

Parts List 15.1 Registration (1 of 2)
Parts List 15.1 Registration (1 of 2)
Item Description Part Number
1 Takeaway Clutch (REP 15.1, page 8-172) 121K41241
2Shaft TA 806E21440
3Gear (40T) 807E20050
4Bearing 013E33420
5Bearing TA 013E33460
6Bracket
7Bracket
8 Regi Transport Assembly (PL 15.2, page 9-98) (REP 15.2, page 8-174) 059K55542
Front
Left
5
6
2
7
3
4
BT
BQ
AG
AG
AG
PL 15.1
1
8
(PL15.2)
s7500-057
