Xerox PHASER 7500 Service Manual

8-162 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 14.13 Duplex Lever/ Latch Cover
PL14.5.4/ PL14.5.6
1. Open the Duplex Cover.
2. Remove 2 screws (silver, 8mm) that secure the Latch Cover.
Note
When removing the Lever in the following step, be careful not to drop the
spring.
3. Release the 2 hooks that secure the Latch Cover and remove the Latch Cover
together with the Lever and the spring.

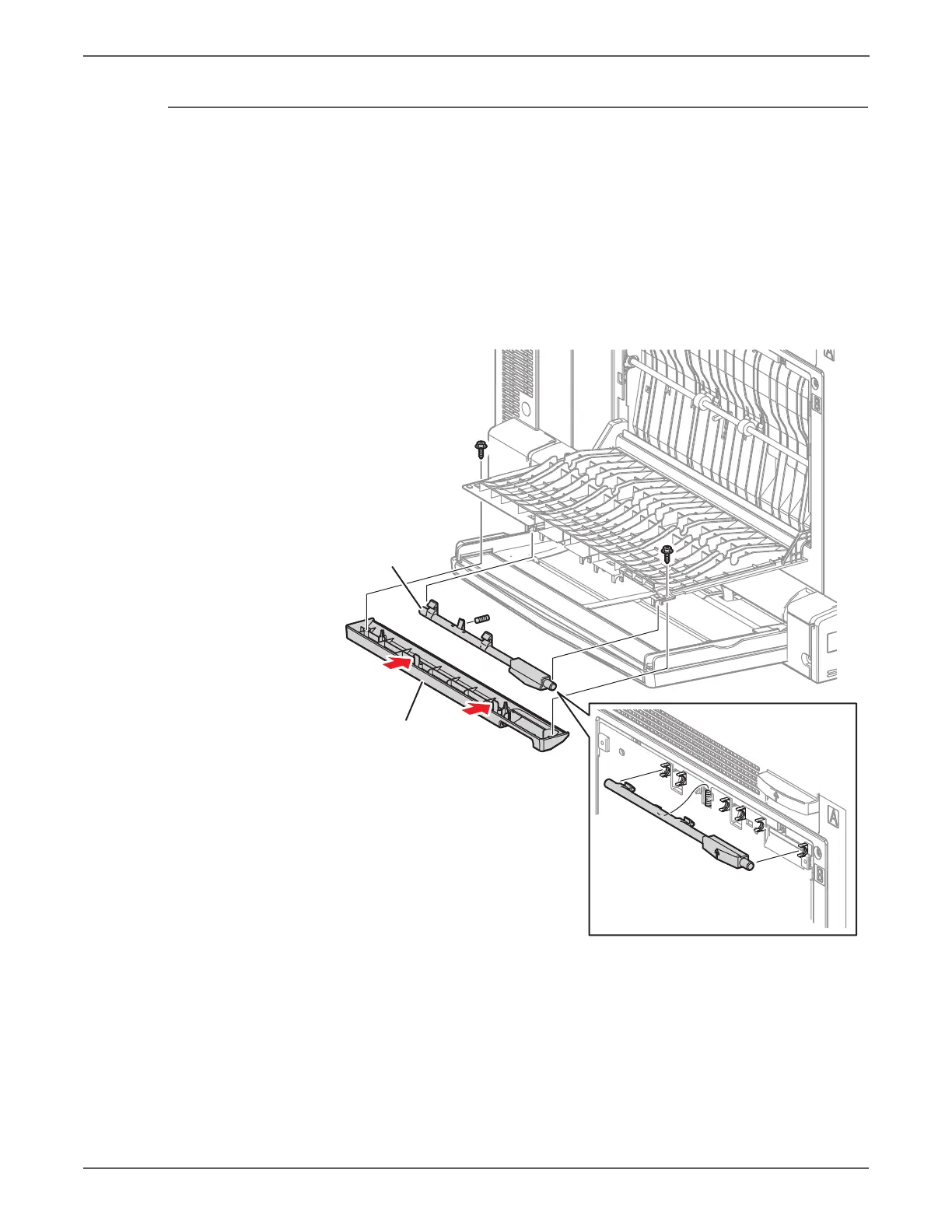

s7500-222
Latch Cover
Lever

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
