Phaser 7500 Printer Service Manual 8-31
Service Parts Disassembly
REP 3.6 Retract Drive Assembly
PL3.2.4
1. Remove the Right Cover (REP 19.8, page 8-219).
2. Remove the PWB Chassis Unit (REP 18.10, page 8-197).

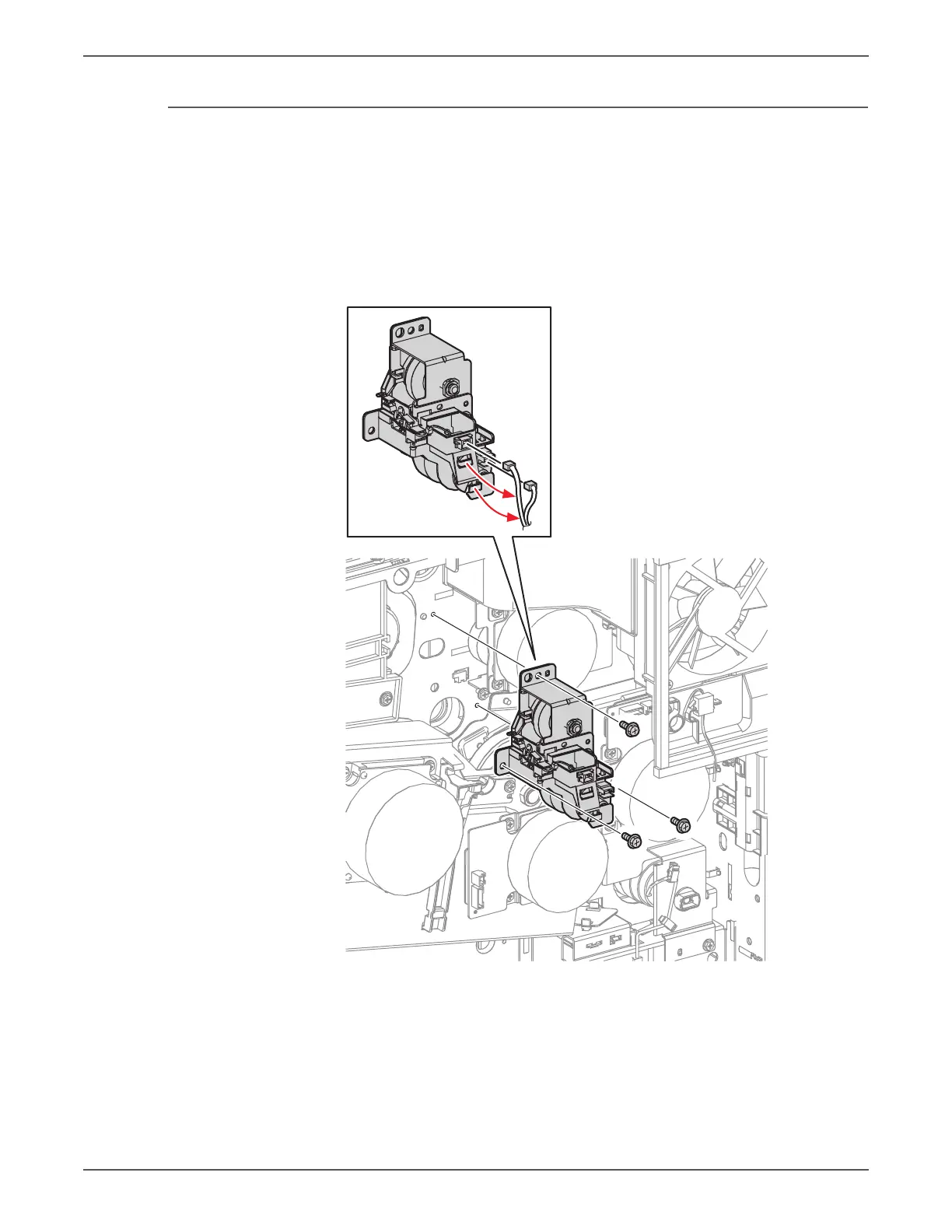

3. Disconnect the 2 wiring harness connectors that are connected to the Retract
Drive Assembly and release the harness from the Harness Guide.
4. Remove 3 screws (silver, 6mm) that secure the Retract Drive Assembly and
remove the Retract Drive Assembly.
s7500-086
