Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-137
Service Parts Disassembly
REP 13.8 Tray 1 Feed Out Sensor
PL13.4.16

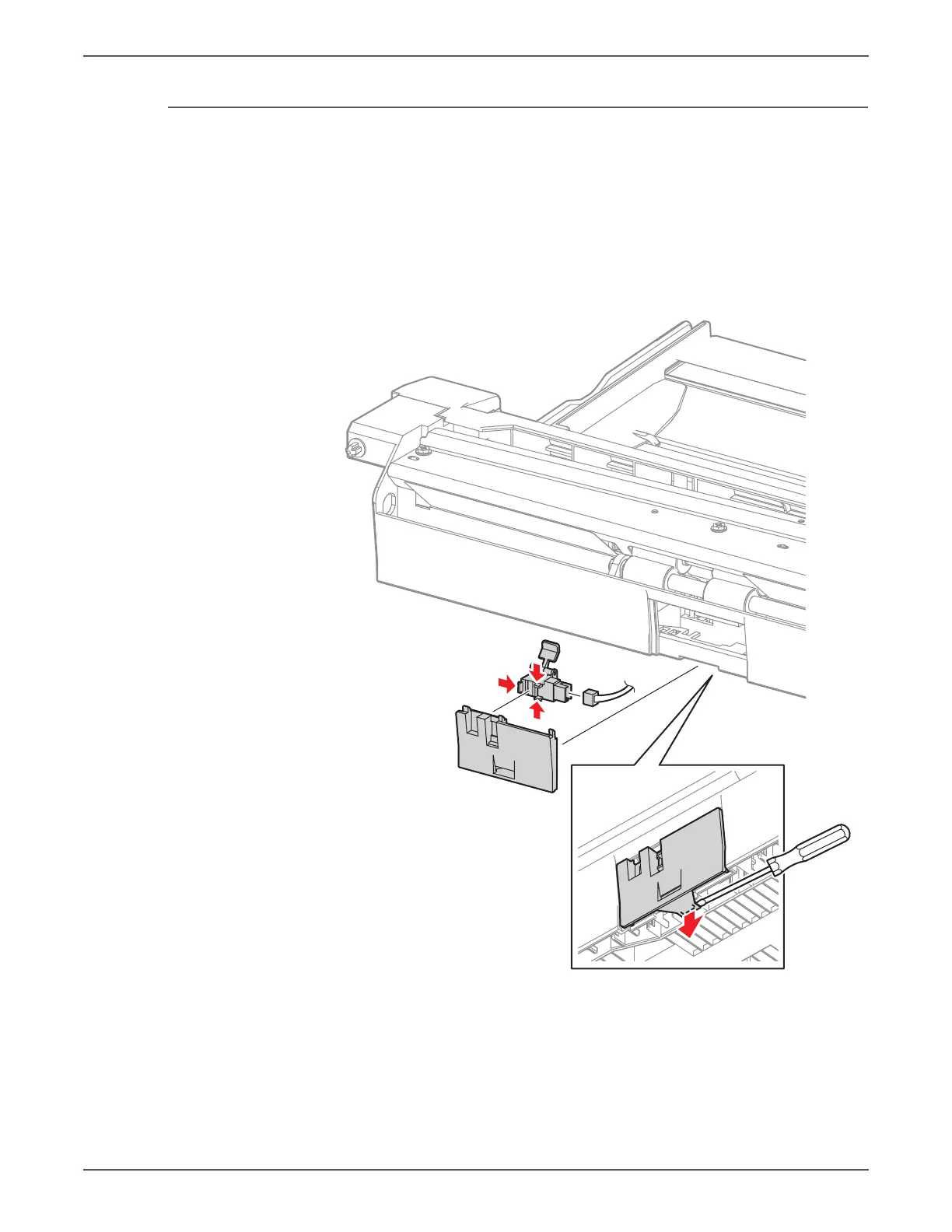

1. Remove the Tray 1 Feeder Assembly (REP 13.1, page 8-130).
2. Use a flat tip screwdriver to release the hook of the Sensor Plate that is
located under the Tray 1 Feeder Assembly, and remove the Sensor Plate.
3. Disconnect the wiring harness connector that is connected to the Tray 1 Feed
Out Sensor.
4. Release the 3 hooks that secure the Tray 1 Feed Out Sensor and remove the
Tray 1 Feed Out Sensor.
s7500-198

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
