Xerox PHASER 7500 - REP 9.15 Clutch Assy. (25 T); One-Way Clutch; Friction Clutch

8-88 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 9.15 Clutch Assy. (25T)/ One-way Clutch/ Friction Clutch
PL9.5.14/ PL9.5.15/ PL9.5.19
1. Remove the Tray 1 Feeder Assembly (REP 9.9, page 8-83).
2. Remove the Feed Roll/Retard Roll/ Nudger Roll (REP 9.14, page 8-87).
3. Pull off each Clutch to remove it.

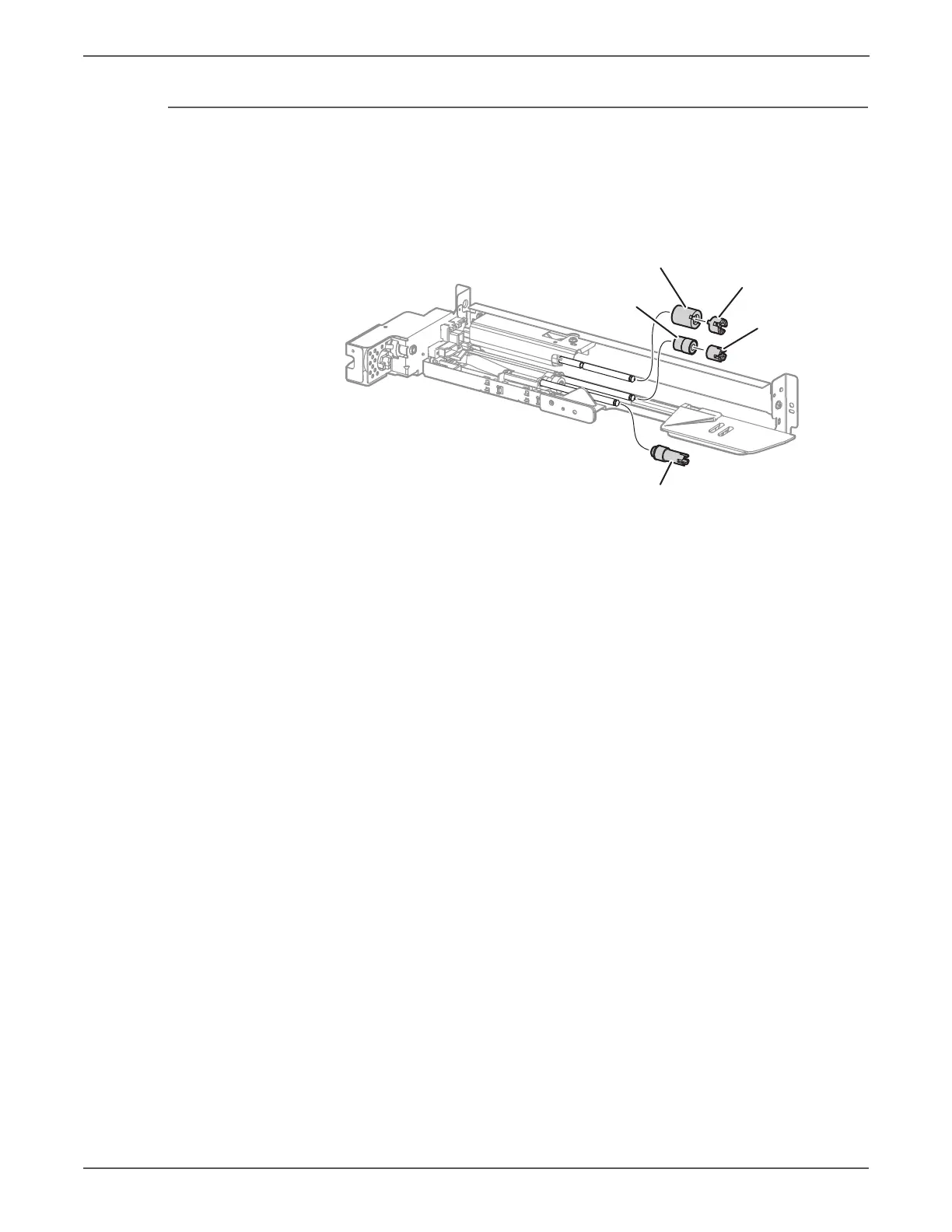

s7500-151
Gear 25
Friction Clutch
One Way Clutch
Clutch Assy (25T)
Spacer
