REP 14.8 Retract Shaft Assembly
PL14.4.4
Caution
Do not touch the Roll surface of the 2nd BTR Assembly.
1. Remove the 2nd BTR Assembly (REP 14.2, page 8-147).
Note
When removing the screws in the following step, be careful not to loose the
spring.
2. Remove 4 screws (silver, 4mm) that secure the 2nd BTR Housing Assembly to
the 2nd Link Assembly.
3. Remove 2 screws (silver, 6mm) that secure the Front Bracket to the Left Hand
Cover Assembly and remove the 2 Brackets together with the 2nd BTR
Housing Assembly.
4. Remove the Rear Bracket.

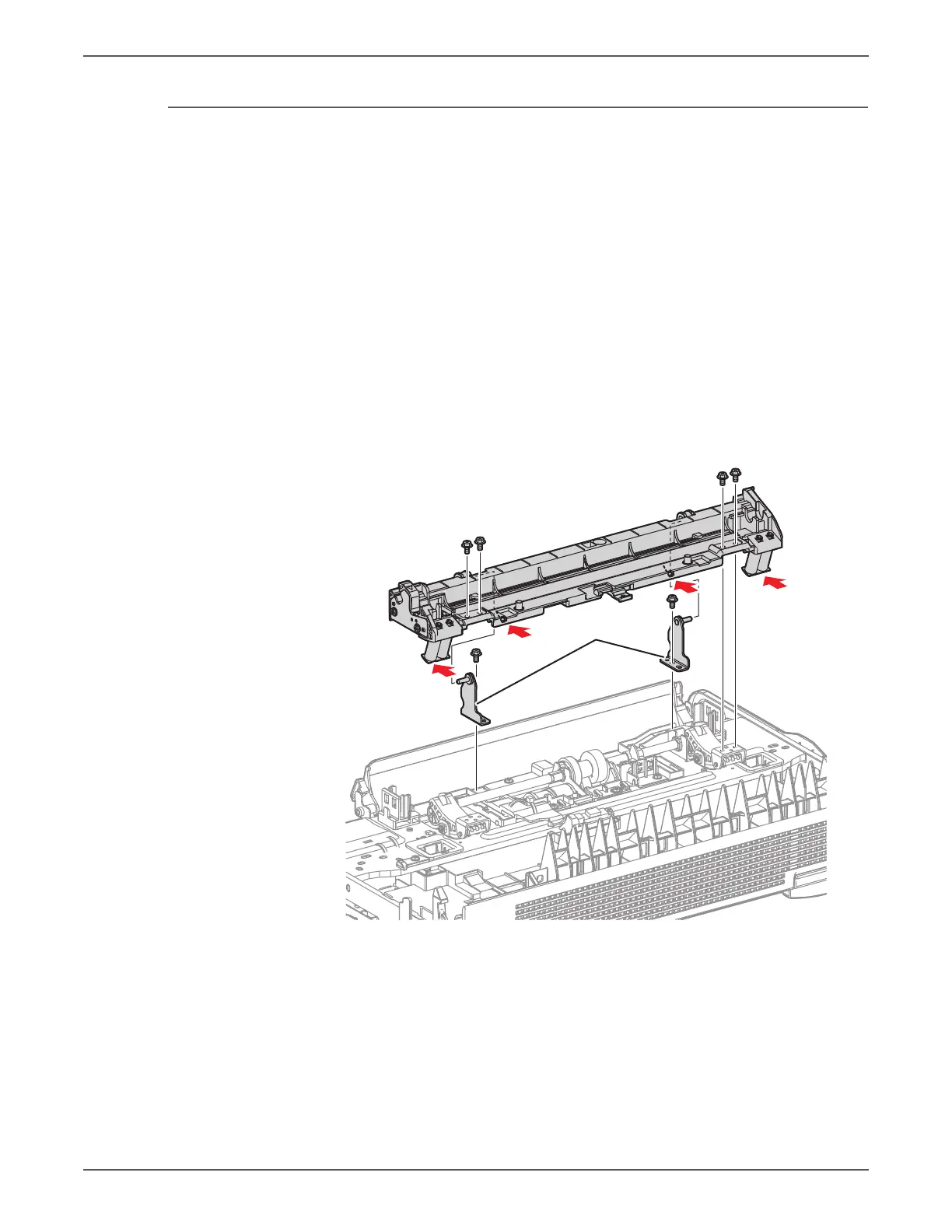

s7500-216
A
A
B
B
Brackets
