Phaser 7500 Printer Service Manual 8-93
Service Parts Disassembly
REP 10.3 Tray 3/4/5 Feed/ Lift Up Motor
PL10.3.3
1. Remove the Tray Assembly from the Tray Module (3T).
2. Remove the Feeder Assembly (REP 10.1, page 8-90).
Note
The following steps are only applicable for the middle and lower Feeder
Assemblies.
3. Remove 1 screw (silver, 8mm) that secures the Bracket and remove the
Bracket.
4. Disconnect the wiring harness connector P/J221 that is connected to the
Feed/ Lift Up Motor.
5. Remove 2 screws (silver, 6mm) that secure the Feed/ Lift Up Motor to the
Feeder Assembly and remove the Feed/ Lift Up Motor.

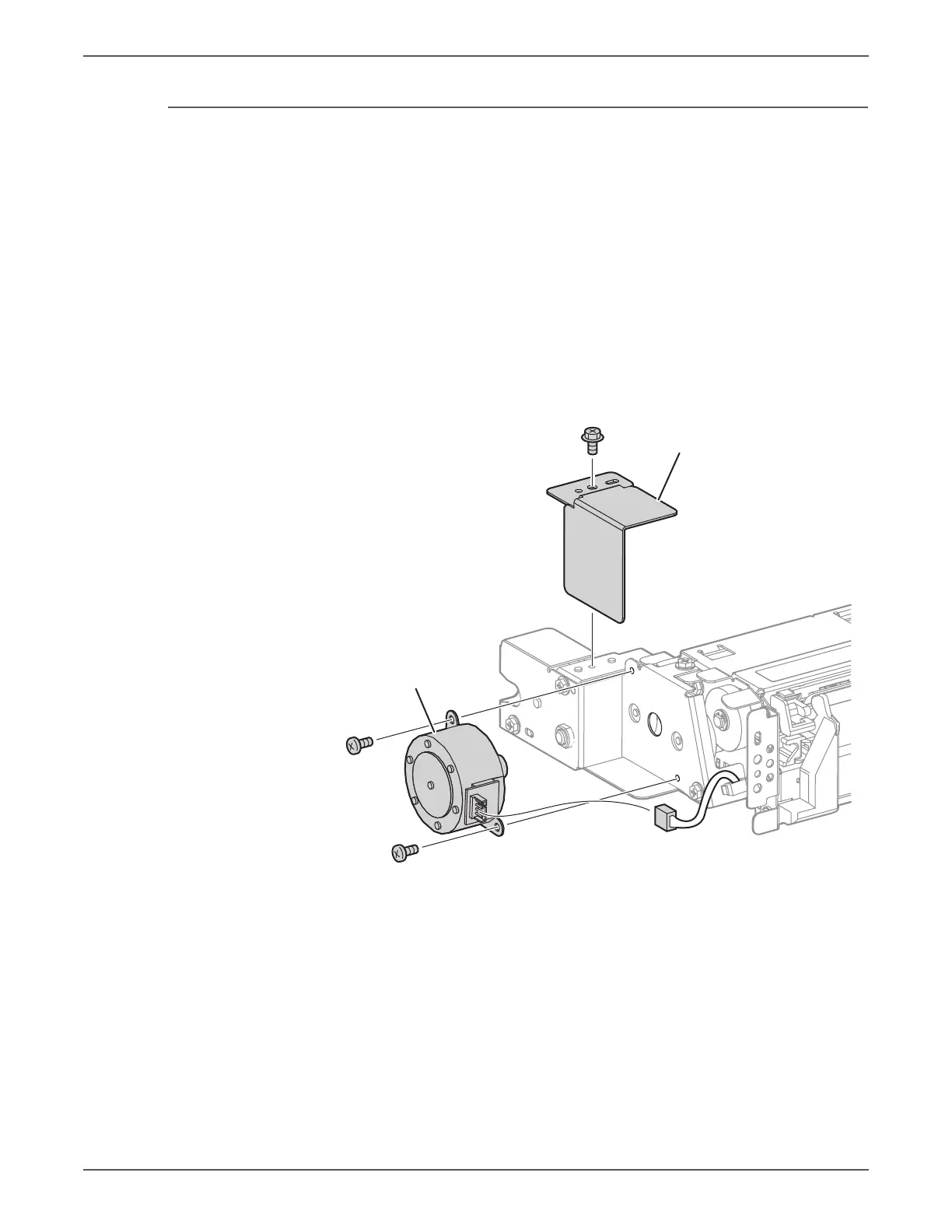

s7500-157
Feed / Lift Up Motor
Bracket
