Xerox PHASER 7500 - REP 5.6 ATC Sensor PWB

8-52 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 5.6 ATC Sensor PWB
PL5.2.18
1. Remove the Front Cover Assembly and Inner Cover Assembly (REP 19.1,
page 8-207).
2. Disconnect the 5 wiring harness connectors that are connected to the ATC
Sensor PWB and release the harness from the Harness Guide.
3. Remove the wires from the guide.
4. Remove 2 screws (silver, 6mm) that secure the ATC Sensor PWB and remove
the ATC Sensor PWB.

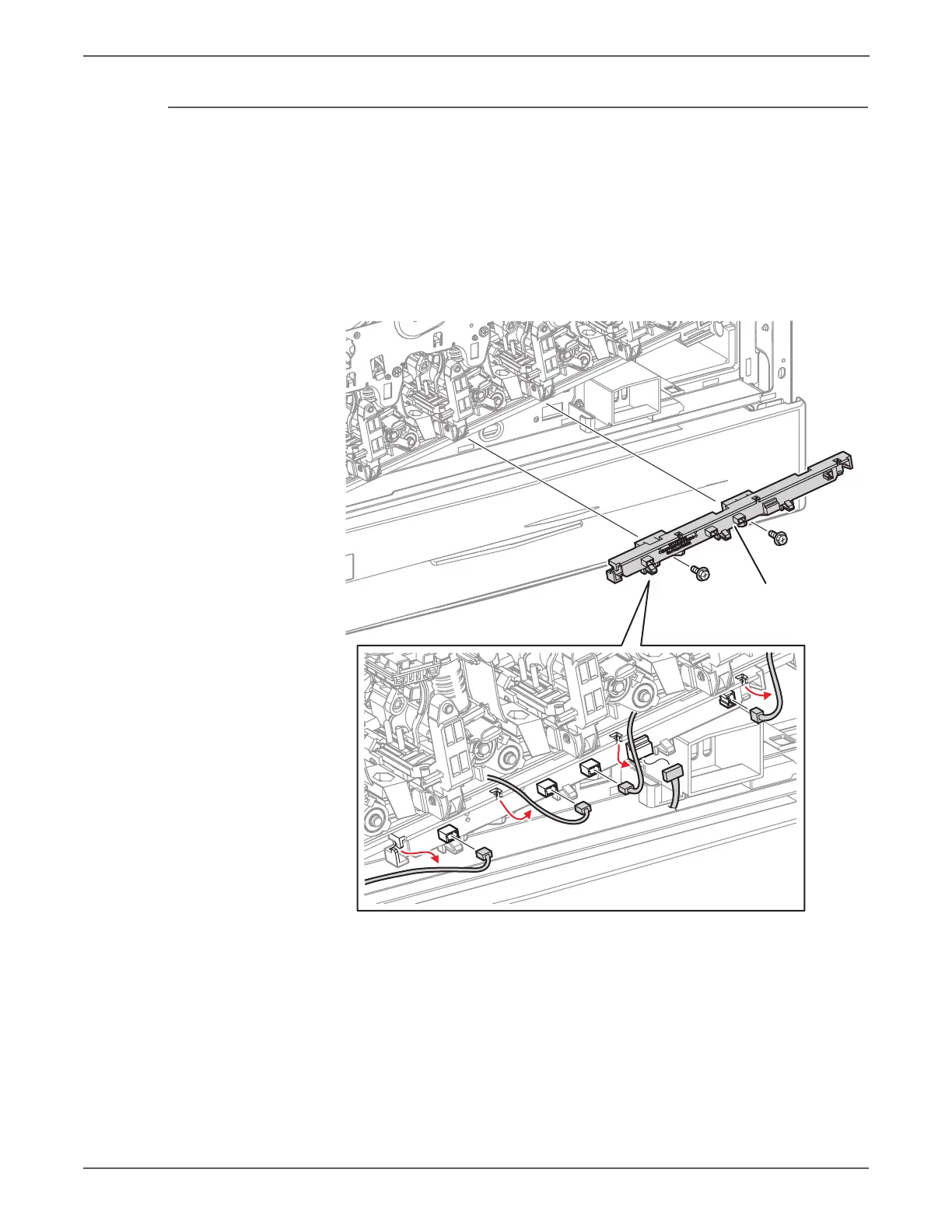

s7500-106
ATC Sensor Board
