8-116 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 11.5 Tray 3 Nudger Level Sensor/ Tray 3 No Paper Sensor
PL10.3.6
1. Remove the Tray Assembly from the Tray Module (1T).
2. Remove the Tray 3 Feeder Assembly-STM (REP 11.1, page 8-112).
3. Release the 3 hooks that secure the Nudger Level Sensor to the Tray 3 Feeder
Assembly-STM and remove the Nudger Level Sensor.
4. Disconnect the wiring harness connector P/J107 that is connected to the
Nudger Level Sensor.
5. Release the 3 hooks that secure the No Paper Sensor to the Tray 3 Feeder
Assembly-STM and remove the No Paper Sensor.
6. Disconnect the wiring harness connector P/J106 that is connected to the No
Paper Sensor.

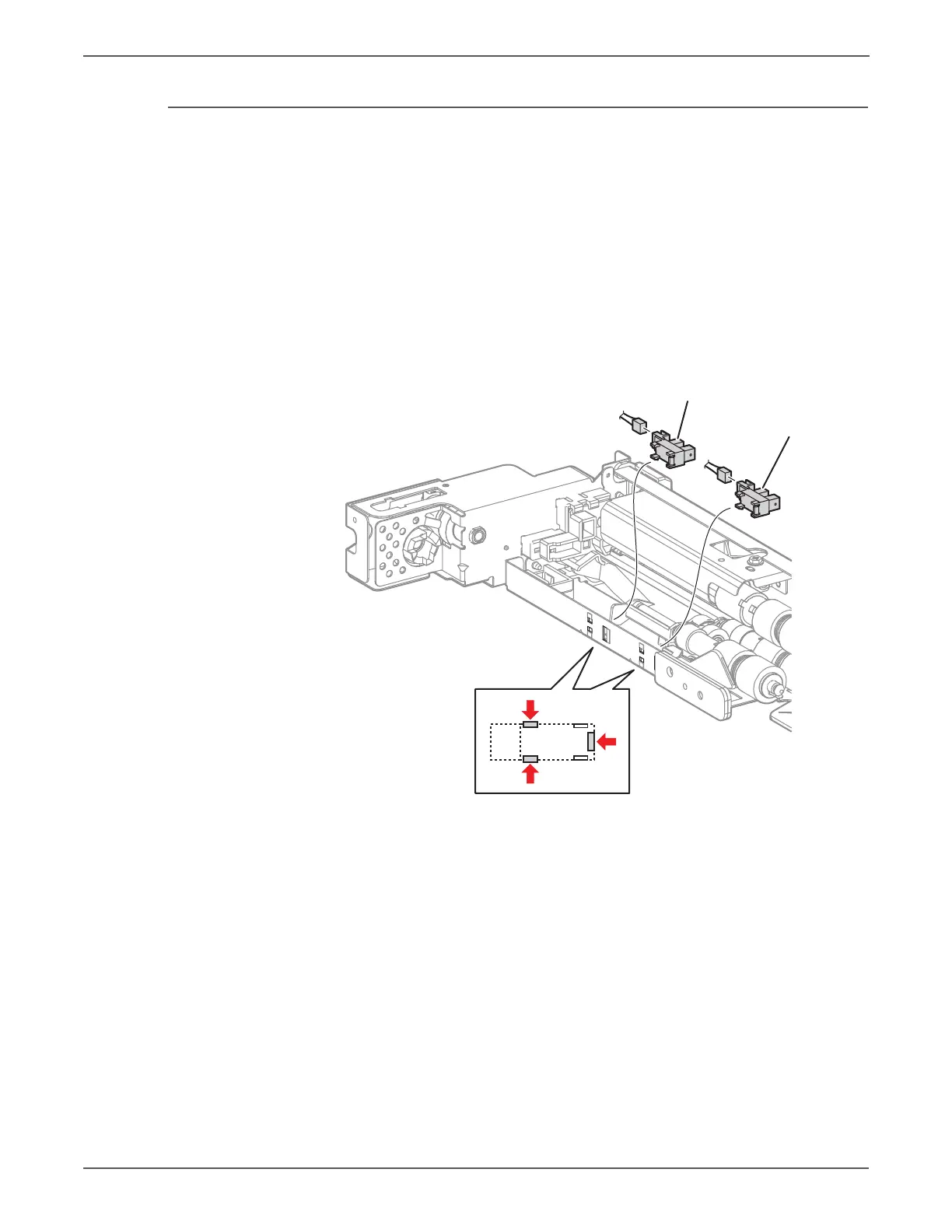

s7500-159
Nudger Level Sensor
No Paper Sensor
To Next Page
