Xerox PHASER 7500 - REP 18.8 LV Fan

Phaser 7500 Printer Service Manual 8-195
Service Parts Disassembly
REP 18.8 LV Fan
PL18.1.13
Caution
PWB’s can be damaged by an electrostatic discharge. Observe all ESD
procedures to avoid component damage.
1. Disconnect the wiring harness connector that is connected to the LV Fan.
2. Remove 2 screw (silver, 6mm) that secure the LV Fan to the LV Fan Bracket and
remove the LV Fan.

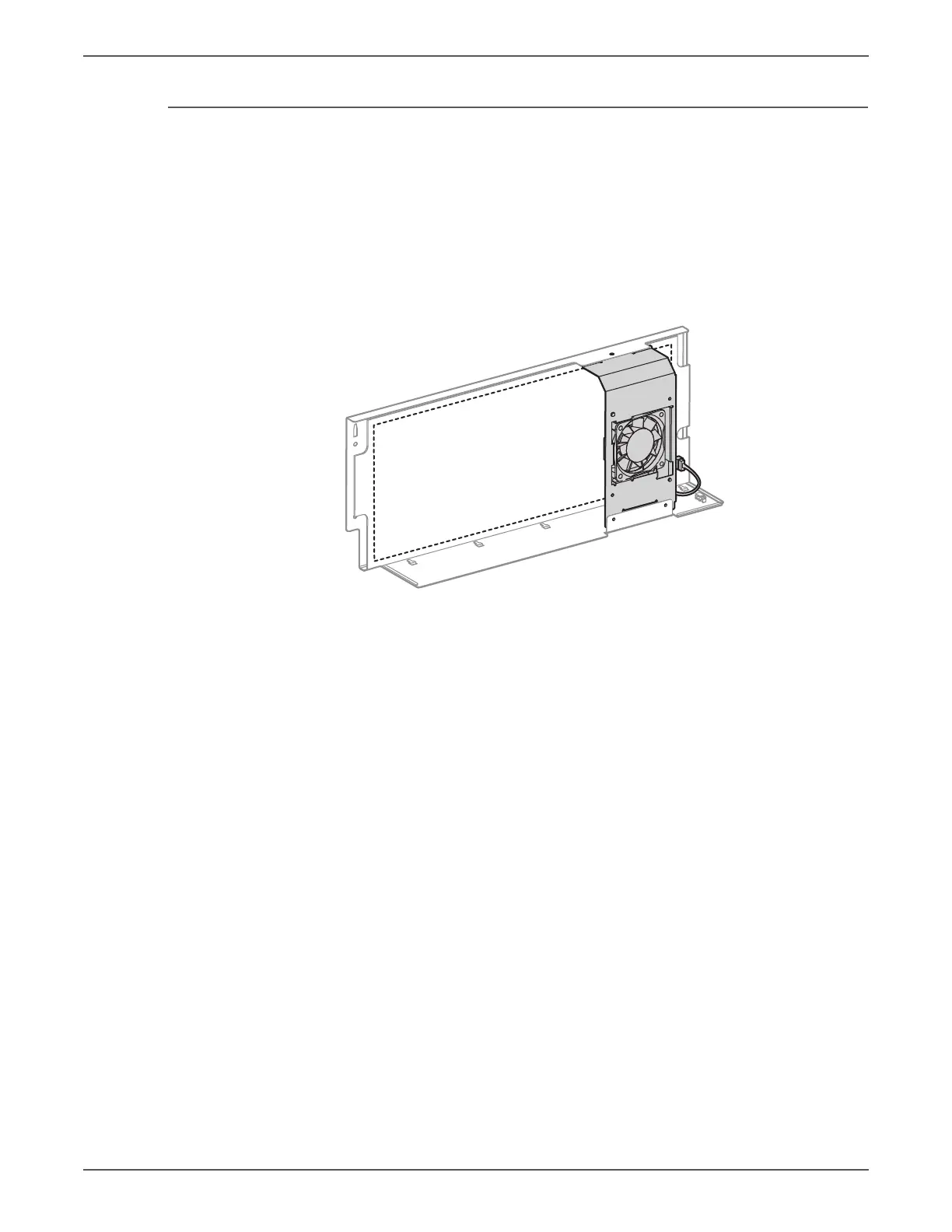

s7500-251
