Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-129
Service Parts Disassembly
REP 11.19 Tray Module (1T) (500-Sheet Feeder)
PL11.1.4
Warning
The printer is heavy and must be lifted by three people. Use safety lifting and
handling techniques when moving the printer (refer to “Moving the Printer” on
page xxvii).

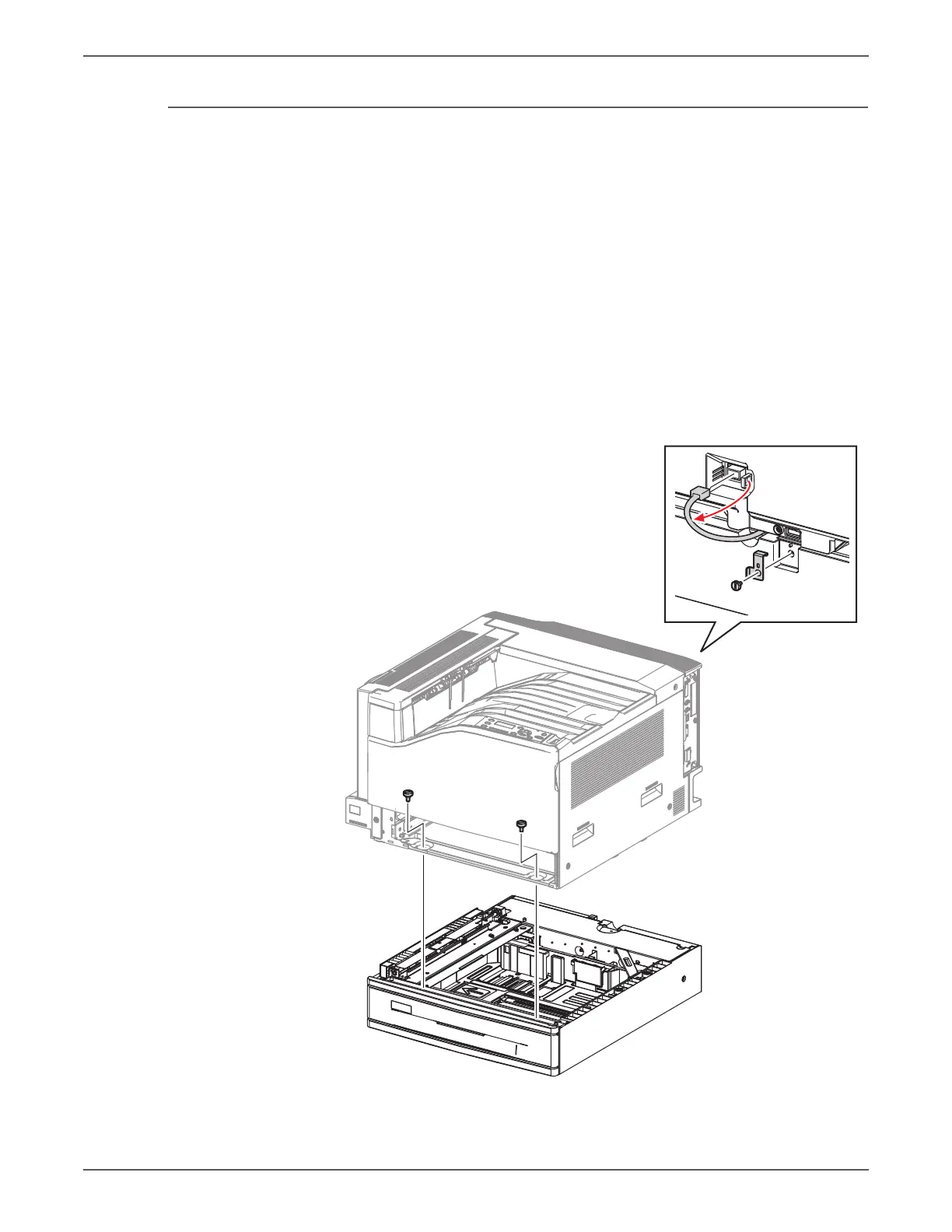

1. Remove the Tray Assembly from the printer.
2. Release the clamp and remove the harness.
3. Disconnect the wiring harness connector that connects the Tray Module (1T)
to the printer.
4. Remove the Docking Screw of the Docking Bracket at the rear that connect
the Tray Module (1T) to the printer.
5. Remove 2 Docking Screws at the front that connect the Tray Module (1T) to
the printer, lift up the printer and remove the Tray Module (1T).
s7500-190

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
