Xerox PHASER 7500 - REP 11.12 L;H Cover Assembly-STM

8-122 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 11.12 L/H Cover Assembly-STM
PL11.6.6
1. Remove the Left Cover-STM (REP 11.16, page 8-126).

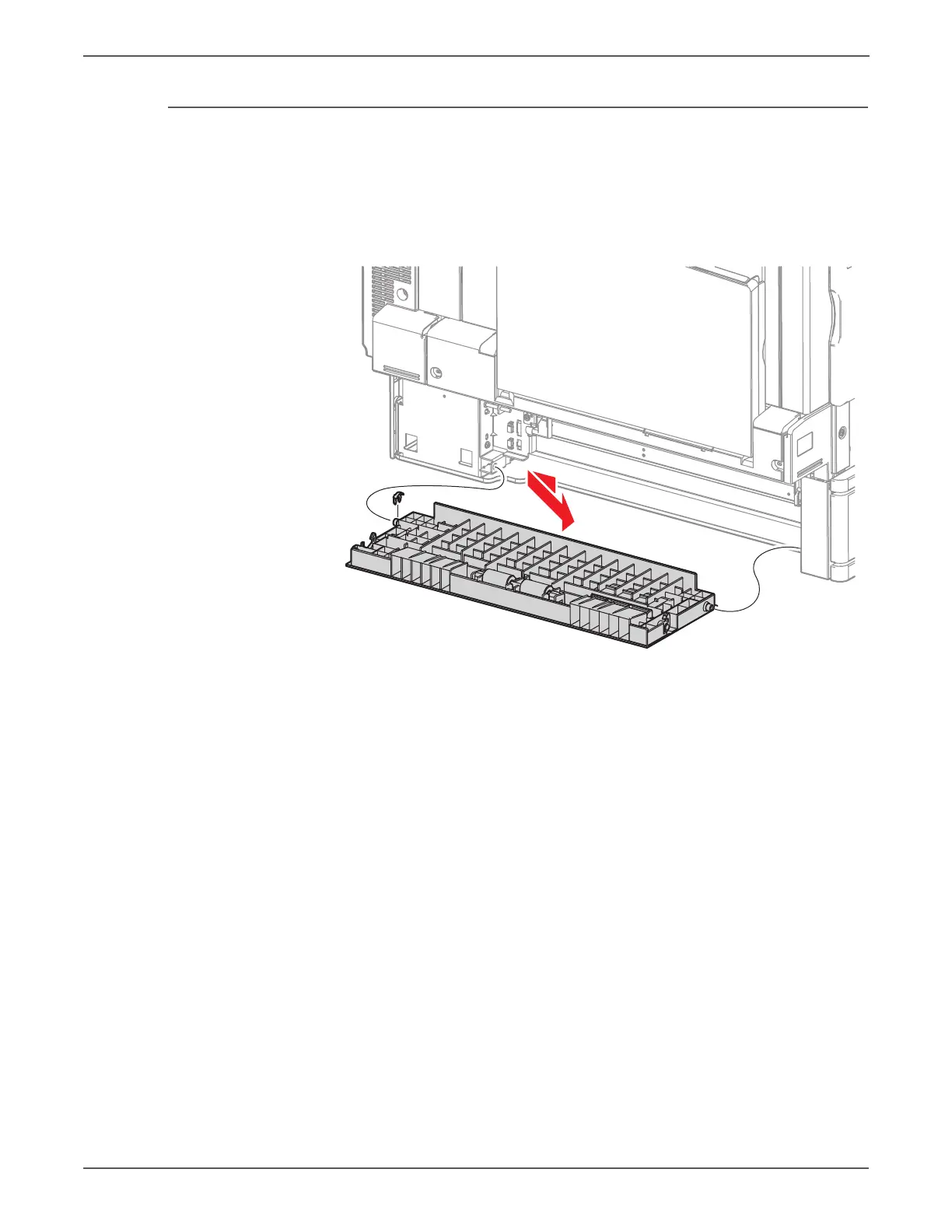

2. Open the L/H Cover Assembly-STM and remove the KL Clip.
3. Slide the L/H Cover Assembly-STM to the rear to release the front boss, then
release the rear boss to remove the L/H Cover Assembly-STM.
s7500-183
