Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-33
Service Parts Disassembly
REP 3.8 Drum/ Deve Drive Assembly
PL3.3.1
1. Remove the PWB Chassis Unit (REP 18.10, page 8-197).
2. Remove the HVPS (1st/ 2nd/ DTS) (REP 6.4, page 8-65).
3. Disconnect the 4 wiring harness connectors on the Drum/ Deve Drive
Assembly that are connected to the Harness Holder, which is installed on the
right (when seen from the rear), and release the hook to remove the Harness
Holder.
4. Disconnect the 4 wiring harness connectors on the Drum/ Deve Drive
Assembly that are connected to the Harness Holder, which is installed on the
right (when seen from the front), release the harness from the Retract Drive
Assembly Harness Guide, and release the hook to remove the Harness Holder.

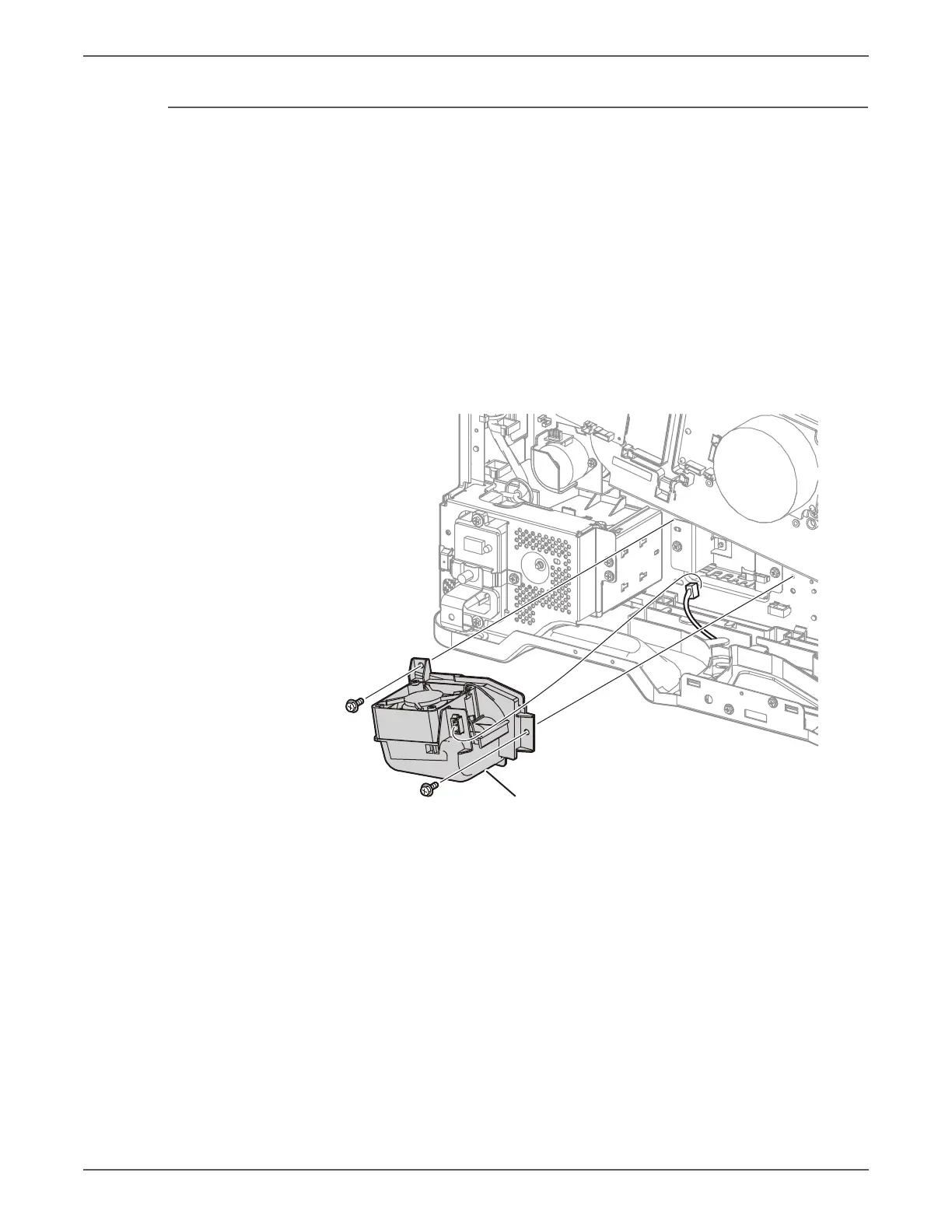

5. Remove 2 screws that secure the Bottom Fan Assembly (PL4.3.6)
6. Disconnect the wiring harness connector and remove the Fan.
Rear Bottom Duct Assembly
s7500-482

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
