Xerox PHASER 7500 Service Manual

8-86 Phaser 7500 Printer Service Manual
Service Parts Disassembly
REP 9.12 Tray Nudger Level Sensor/ Tray 2 No Paper Sensor
PL9.4.6
1. Remove the Tray 2 Feeder Assembly (REP 9.9, page 8-83).
2. Release the 3 hooks that secure the Tray 1 Nudger Level Sensor to the Tray 2
Feeder Assembly and remove the Tray 1 Nudger Level Sensor.
3. Disconnect the wiring harness connector P/J107 that is connected to the Tray
2 Nudger Level Sensor.
4. Release the 3 hooks that secure the Tray 2 No Paper Sensor to the Tray 2
Feeder Assembly and remove the Tray 2 No Paper Sensor.
5. Disconnect the wiring harness connector P/J106 that is connected to the Tray
2 No Paper Sensor.

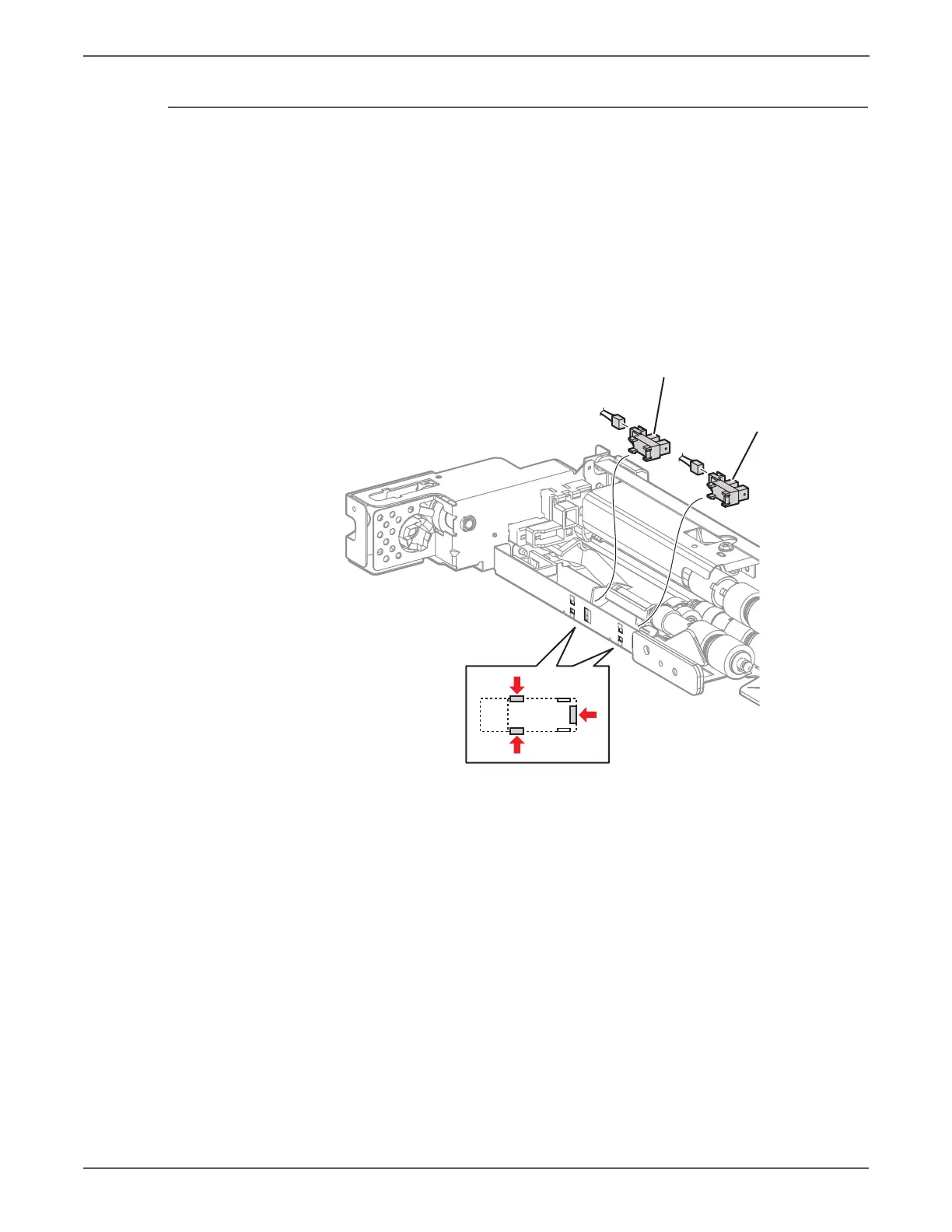

s7500-148
Tray 1 No Paper Sensor
Tray 1 Nudger Level Sensor

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
