Xerox PHASER 7500 Service Manual

Phaser 7500 Printer Service Manual 8-207
Service Parts Disassembly
Cover
REP 19.1 Front Cover Assembly/ Inner Cover Assembly
PL19.1.10/ PL19.1.13
Caution
Do not expose the Imaging Unit to light for more than 5 minutes. Cover the
Imaging Unit to avoid damage. Do not touch the surface of the Imaging Unit.
Note
When removing the Deve or Dispenser inside the printer, remove the Front
Cover Assembly and the Inner Cover Assembly at the same time.
1. Remove the Imaging Unit (Y/M/C/K) (REP 1.2, page 8-10).
2. Remove the Toner Cartridge (Y/M/C/K) (REP 1.1, page 8-9).
3. Remove the Waste Cartridge (REP 1.3, page 8-12).
4. Remove the IBT Belt Cleaner Assembly (REP 6.1, page 8-57).

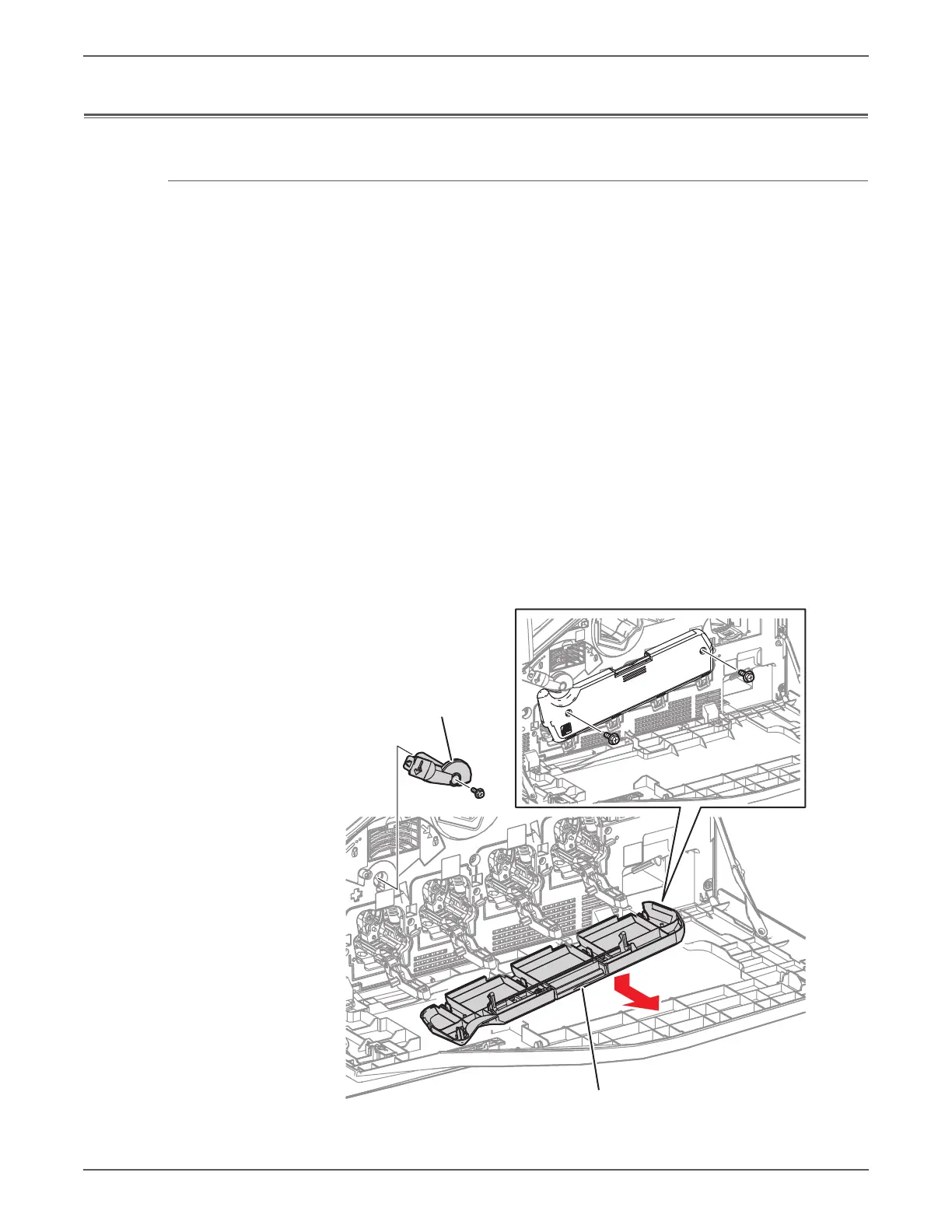

5. Remove 2 screws (silver, 8mm) that secure the Imaging Unit Cover.
6. Open the Imaging Unit Cover, part way to first detent, and pull it towards you
to remove it.
7. Remove 1 screw deeply recessed (silver, 8mm) that secures the Tension Lever
and remove the Tension Lever.
s7500-263
Imaging Cover
Tension Lever

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
