8-208 Phaser 7500 Printer Service Manual
Service Parts Disassembly
8. Open the Left Hand Cover Assembly (Door A).
9. Remove 6 screws (silver, 8mm) that secure the Inner Cover Assembly to the
printer.
10. Remove the Front Cover Assembly and the Inner Cover Assembly at the same
time.

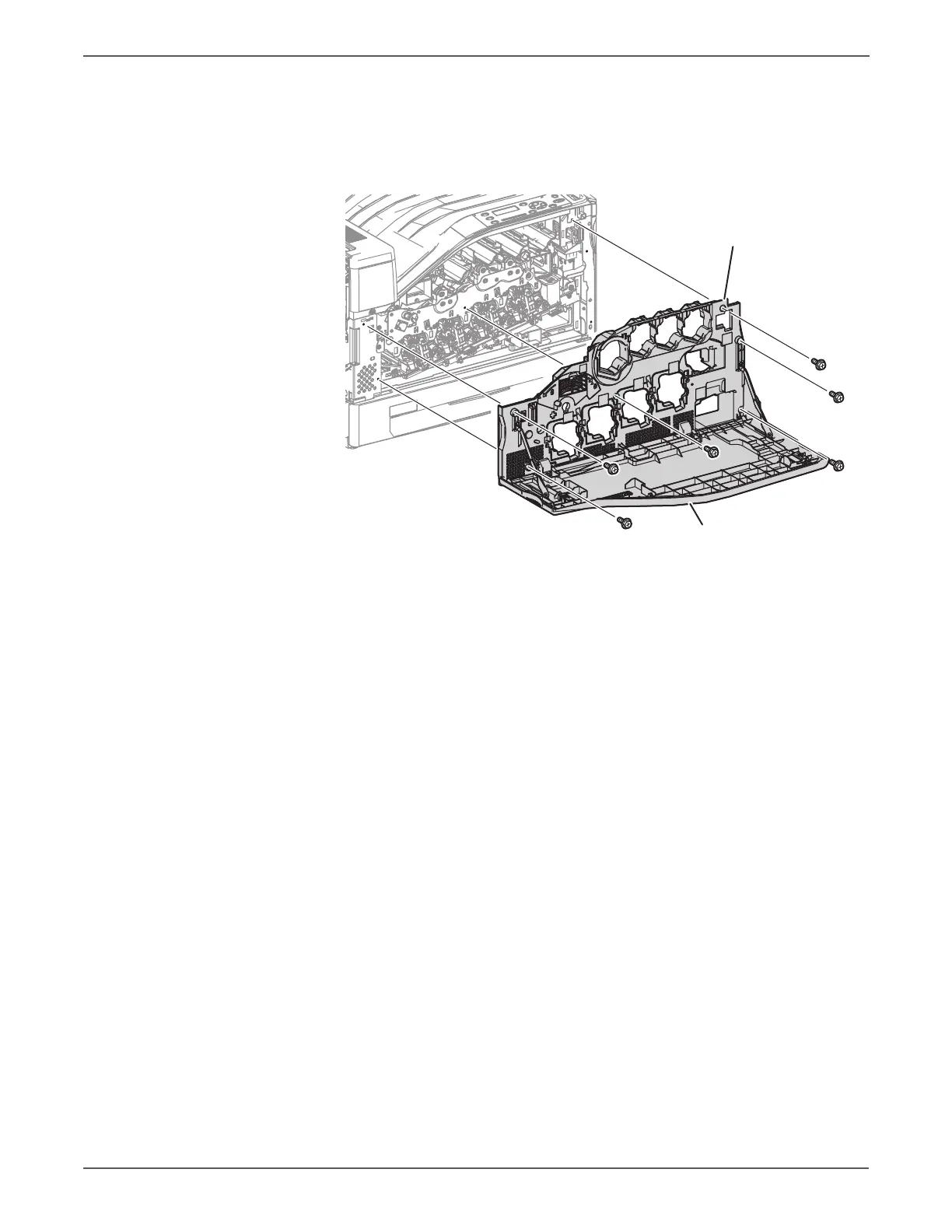

s7500-264
Front Cover Assembly
Inner Cover Assembly
